Measure the gap between your counter and the cabinet above it, then buy from the half of this list that fits. Eighteen inches or more: the Technivorm Moccamaster KBGV Select, 14.00 in tall and 6.50 in deep. Under 16: the Hamilton Beach FrontFill 5-Cup at 10.3 in, which fills from the front so nothing hinges up into the cabinet. Want a timer and a full pot for less: the Braun BrewSense.
Every figure here comes from the manufacturer's own specification page; where a brand publishes nothing, the table says "not published" rather than borrowing a number from a retailer. Three of these seven are under 11 inches tall, which is the point of the guide.
How to shop for a small-kitchen coffee maker
Height, and the clearance you actually have
KraftMaid publishes the standard installation — wall cabinets 54 inches above the floor over a 36-inch counter — so a normal kitchen leaves 18 inches. Most drip machines are 14 to 16 inches tall, which sounds fine until a rear-hinged lid has to open. No brand publishes the lid-open height, so the workaround is a machine that fills from the front or has a tank you lift out.
Footprint, depth over width
Wall cabinets are 12 inches deep and base cabinets are 24, so a machine that is shallow front-to-back buys more usable counter than one that is merely narrow. Depth is the number nobody compares and the one you run out of.
A published brew temperature
SCA Standard 310-2021 specifies 90 to 96 °C for a certified home brewer. Exactly two machines here carry a certification; the rest say "the right temperature" and leave it there. Where a brand publishes no wattage or no labeled height, that absence goes in the table as published.
Carafe type and whether there is a timer
A thermal carafe removes the hot plate, and a hot plate is what scorches a pot after about half an hour. Glass shows you the level and costs less. A 24-hour timer is the difference between coffee at 6 a.m. and coffee at 6:12, and two machines below are widely assumed to be programmable and are not — hence the Timer row.
Best overall

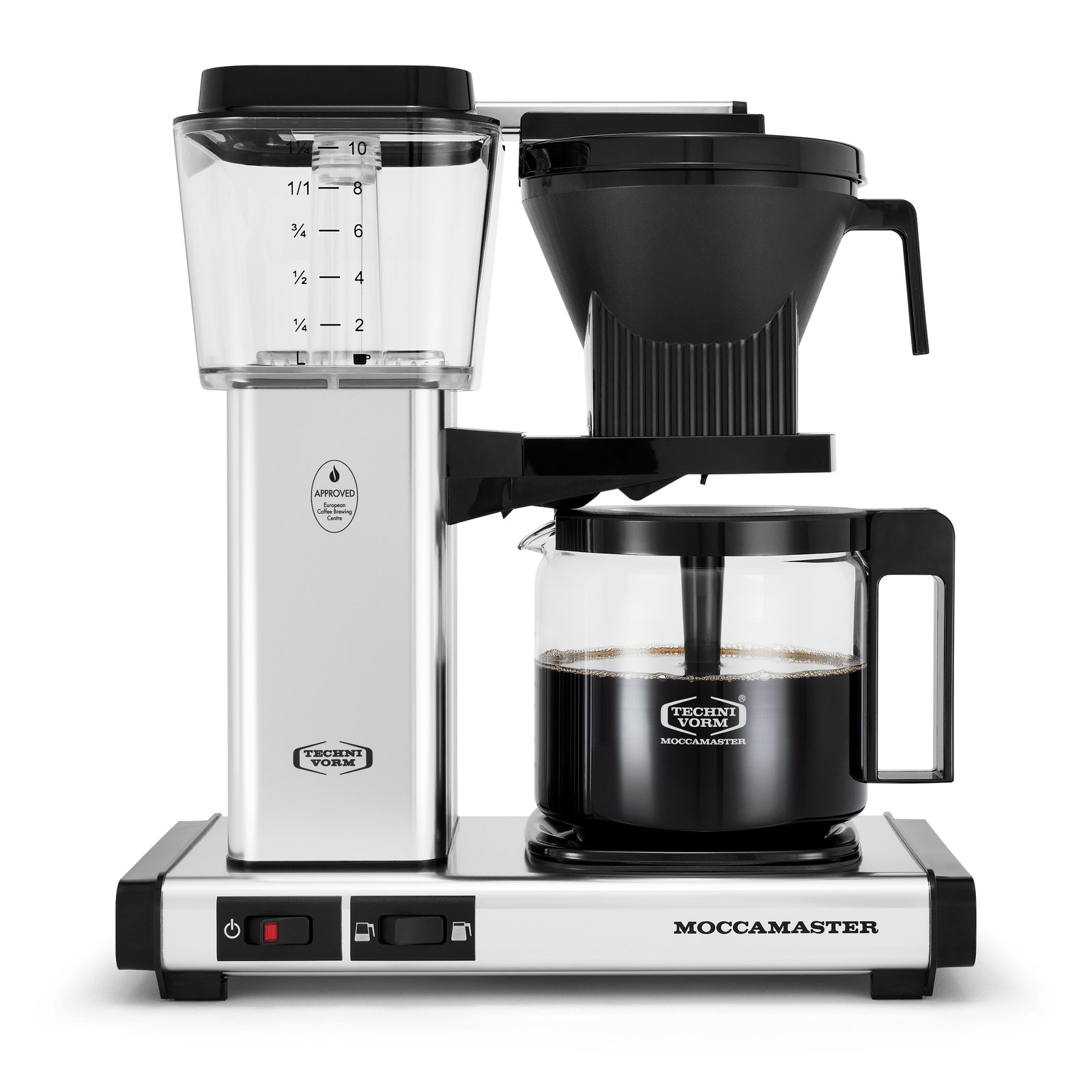

Image: Technivorm Moccamaster
Technivorm Moccamaster KBGV Select
Only 6.50 inches deep, and priced like furniture
Model
KBGV Select
Height
14.00 in, "Fits 18-in gap": Yes — 4.0 in spare
Footprint
12.75 × 6.50 in
Capacity
40 oz / 10 cups
Carafe
Glass
Timer
None
Power
1475 W
Reasons to buy
12.75 in wide by 6.50 in deep, the shallowest footprint of any full-size machine here, and 14.00 in tall — four inches of air under a standard cabinet gap
The only machine in this set both certified by the ECBC and approved by the SCA to the Golden Cup standard, stated on Technivorm's own spec block
6.00 lb with a published five-year warranty, and built as separate replaceable parts
Reasons to avoid
No timer of any kind — Technivorm publishes an auto-off at 100 minutes and nothing else
1475 W is a heavy draw to share with a kettle on one circuit
The Moccamaster wins on a number most reviews never print: 6.50 inches of depth. A counter is 24 inches deep and a wall cabinet covers the back 12, so a machine this shallow sits fully under the cabinet and still leaves a foot of working counter in front of it. Beyond that you pay for an independently certified brew and parts you can replace one at a time. You give up a clock. I would still buy this one.
Not the right fit if you want coffee ready before you get up — see the Braun BrewSense, which has a 24-hour timer.

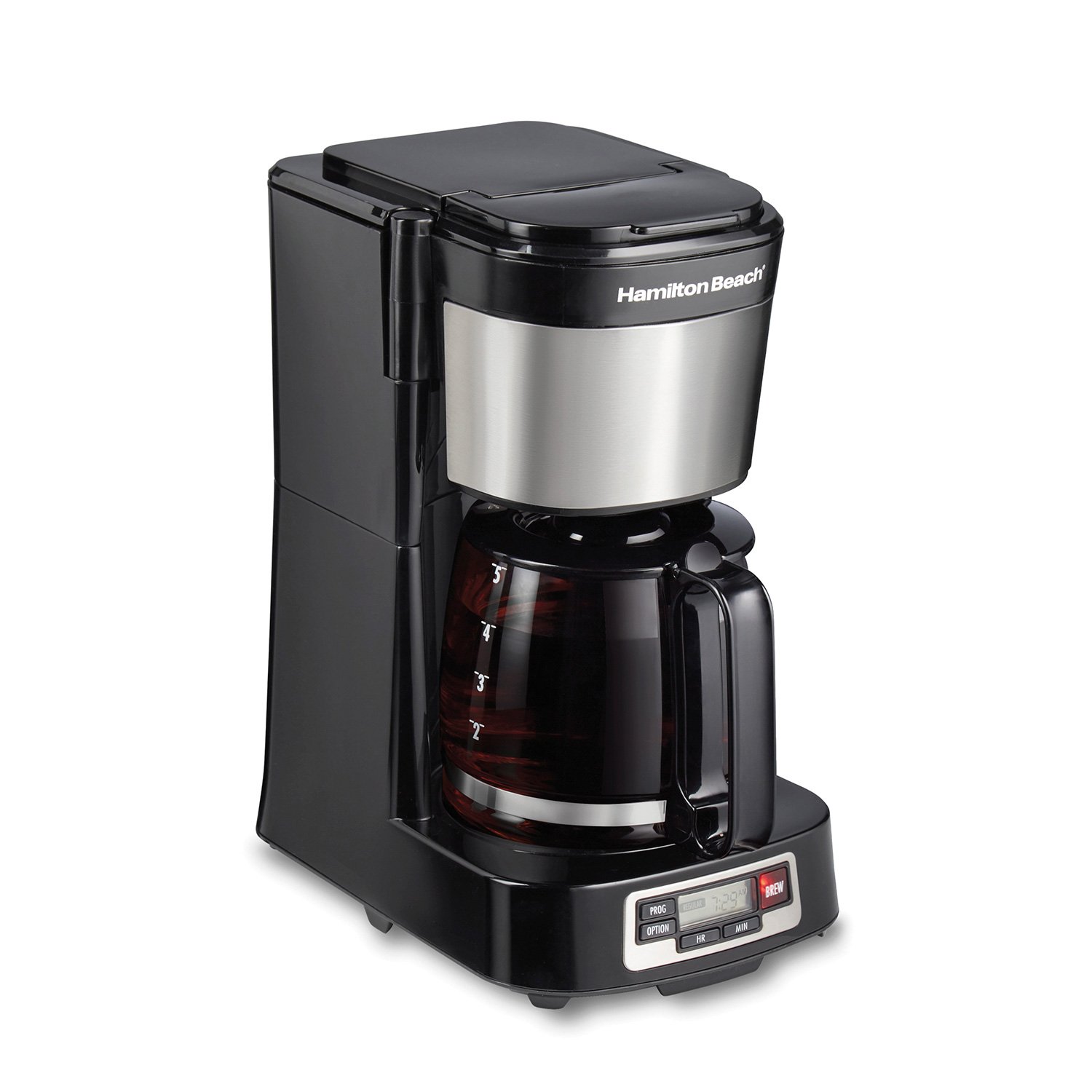

10.3 inches tall, one of only three machines here under 11 inches
The reservoir fills from the front and the basket swings out, so nothing hinges up into the cabinet — the one feature that makes clearance stop mattering
5.8 inches wide, and programmable up to 24 hours ahead with a two-hour auto shutoff
Reasons to avoid
Five cups is two mugs and a top-up, not a pot for guests
No published wattage and no brew temperature, so nothing to check against the SCA's 90 to 96 °C band
This is the machine for anyone whose clearance came back under 16 inches. At 10.3 inches with a front-filling reservoir, the cabinet above stops being part of the conversation — you never lift anything. You give up everything past the basics: five cups, no wattage, no temperature figure, no certification. A cheap appliance that does one job in a tight space, with dimensions that back the small-kitchen claim rather than decorating it.
Not the right fit if you need a full pot for more than two people — see the Cuisinart 14-Cup.
14.2 (unit not published), "Fits 18-in gap": Unconfirmed — no units published
Footprint
7.9 × 7.9 (unit not published)
Capacity
12 cups
Carafe
Glass
Timer
24-hour
Power
1000 W
Reasons to buy

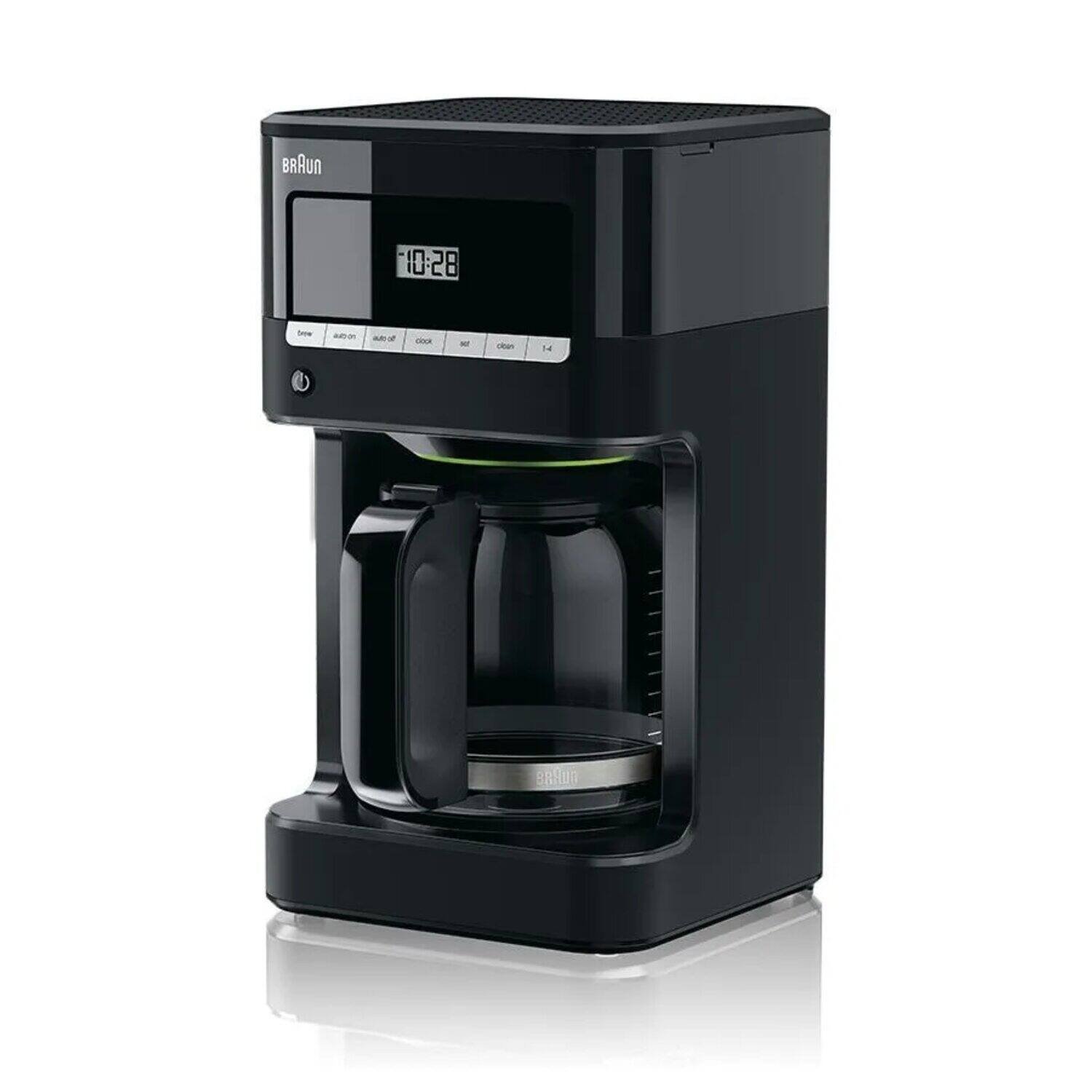

A 24-hour timer and a 1-to-4-cup setting, so it does one weekday mug and a full pot on Sunday
1000 W is modest for a 12-cup machine, which is the kind of load that shares a kitchen circuit without argument
A roughly square 7.9 by 7.9 footprint corners better than a wide slab, with a charcoal filter and a published descaling alarm
Reasons to avoid
Braun publishes its dimensions as "7.9x7.9x14.2" with no units and no axis labels, so this guide will not print a fit verdict for it
No published brew temperature, no SCA certification, and a glass carafe on a warming plate
One machine that covers a weekday mug and a weekend pot without premium money. The timer is what the Moccamaster refuses to have, and 1000 watts is gentle on a shared circuit. I dock it for the specification page: a dimension string with no units is a real problem in a guide ranked on fit. Within an inch of your limit, buy the Hamilton Beach instead.
Not the right fit if your clearance is under 15 inches and you cannot afford to guess — see the Hamilton Beach FrontFill.

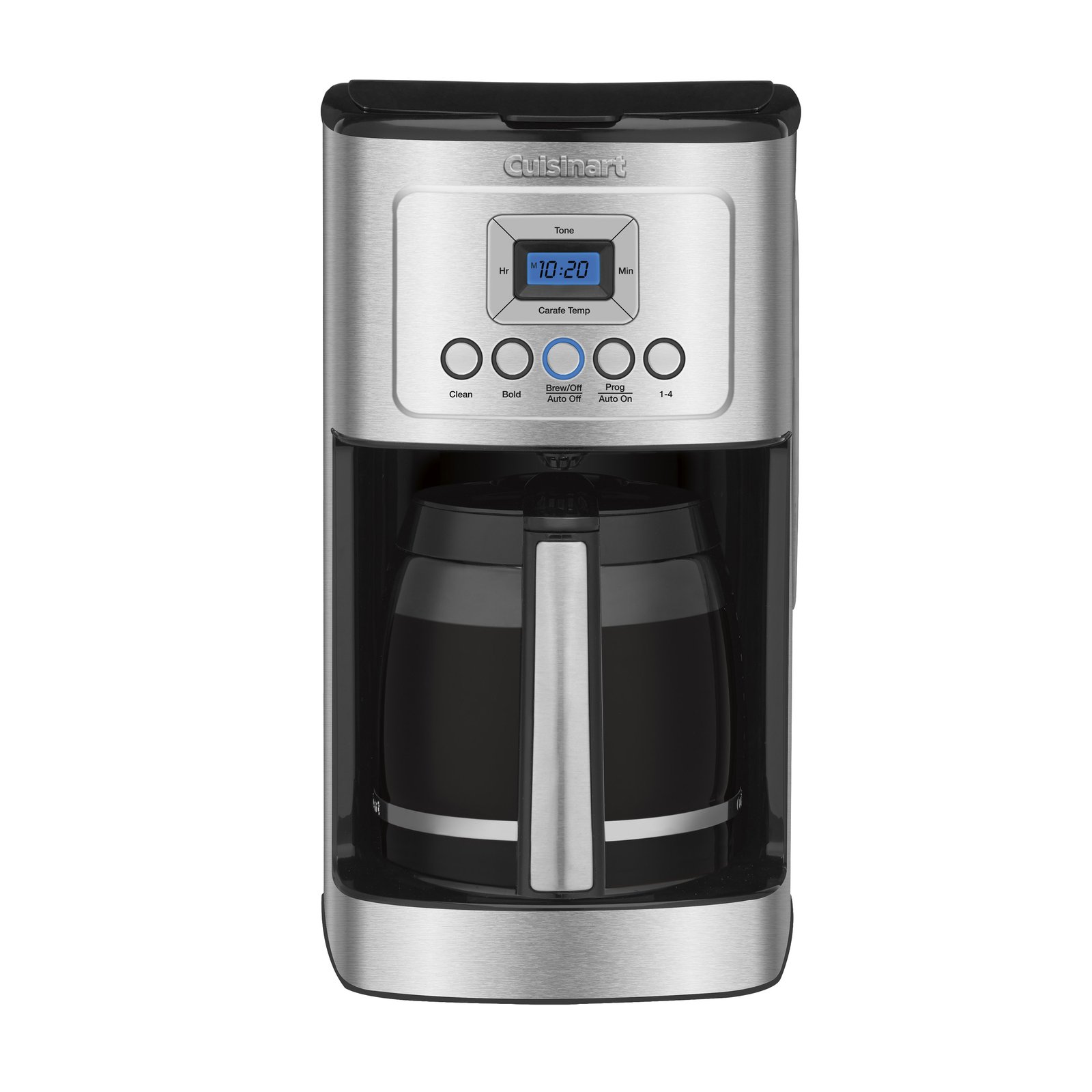

14 cups out of a body Cuisinart publishes as 7.75 by 9 inches and 14 inches tall — by far the most coffee per inch of counter here
24-hour programmability, a brew-strength control, a 1-to-4-cup setting and Brew Pause — the combination that makes a big machine usable for one person
A three-year limited warranty, published
Reasons to avoid
No published wattage, and a 14-cup machine is exactly the appliance you want one for before plugging it in beside a kettle
No brew temperature and no SCA certification despite the PerfecTemp name, and a weight published as "12.79" with the unit left off
The ratio is the argument: 14 cups from 7.75 by 9 inches. If you host, nothing else here competes without taking over the counter, and at 14 inches it fits where you would expect a 14-cup machine not to. The catch is the paperwork: PerfecTemp is a trademark, not a figure. Buy it for capacity in a small space, not for precision it does not document.
Not the right fit if you drink two cups a day and want them measured — see the Moccamaster.
Not published (see note), "Fits 18-in gap": Not published
Footprint
Not published (see note)
Capacity
8 cups
Carafe
Double-wall vacuum thermal
Timer
None published
Power
Not published
Reasons to buy

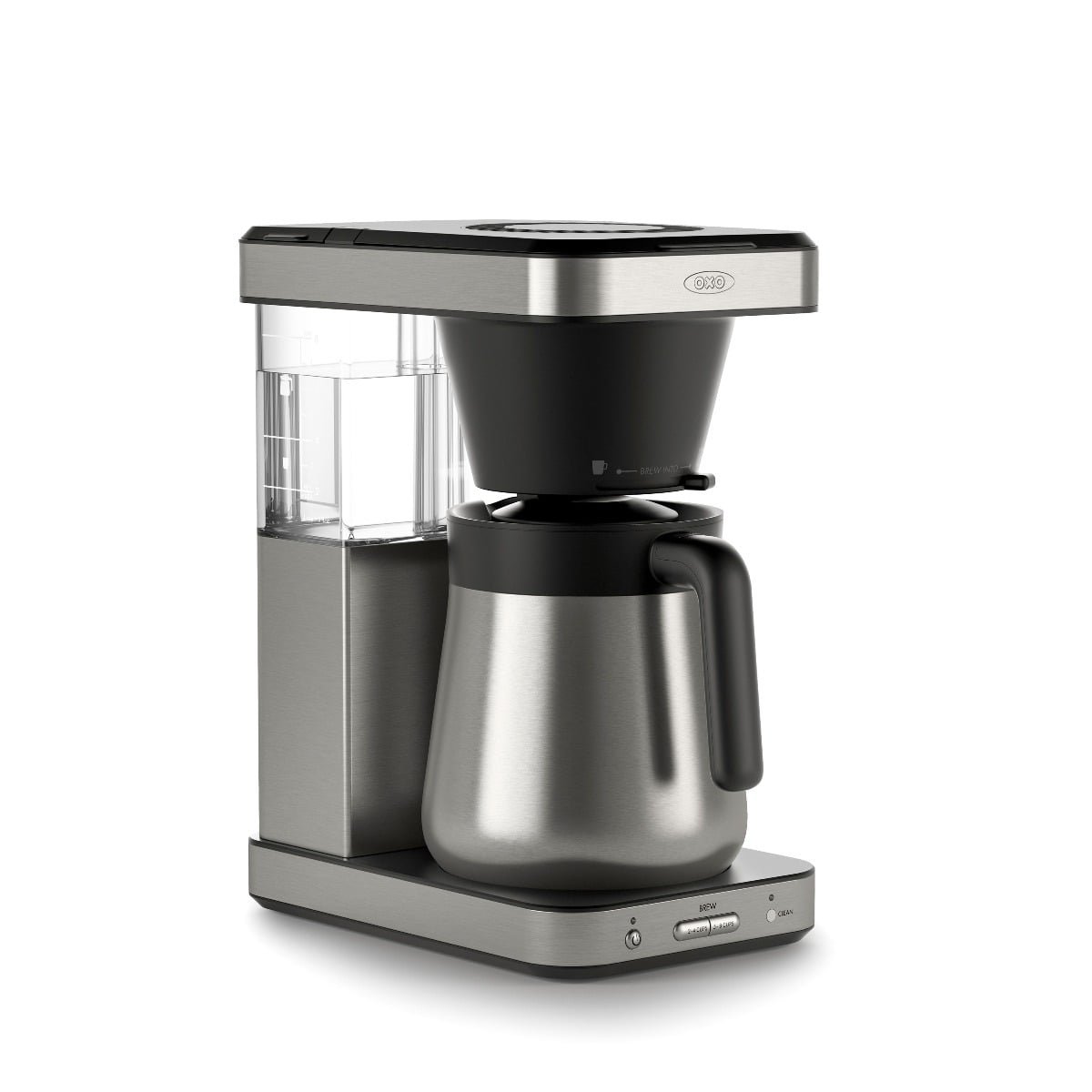

Certified by the Specialty Coffee Association to the Golden Cup standard — one of only two machines here with a certification rather than an adjective
A double-wall vacuum thermal carafe with a brew-through lid, so the coffee holds heat with nothing cooking it from below
Brews a single mug or the full 8 cups, and the rainmaker head wets the whole bed instead of drilling through the middle of it
Reasons to avoid
OXO publishes one dimension line — 13.5 by 10.5 by 7 inches, no axis labels — and it disagrees with the height retailers list, so this guide prints no under-cabinet figure for it
No timer in the published feature set, and at 10.285 lb it is heavy for its size
On coffee this is the second-best machine here and it is not close: the certification means the brew temperature was measured by somebody other than the marketing department, and the vacuum carafe means the pot tastes the same at 9 a.m. as at 7. What I cannot tell you is whether it fits your cabinet — OXO's one dimension string is unlabeled and disagrees with what sellers list.
Not the right fit if you need the height confirmed before you buy — see the Moccamaster or the Hamilton Beach.

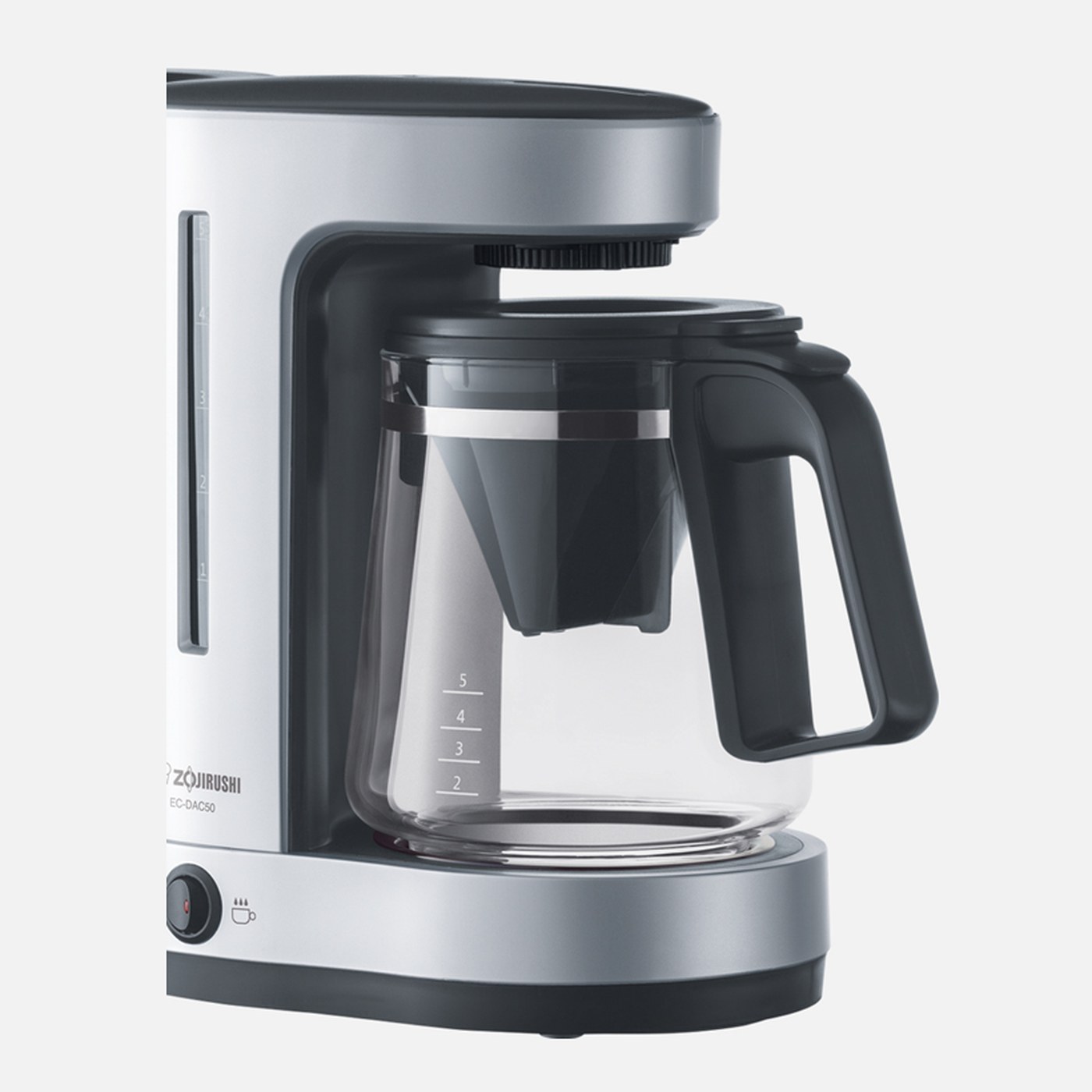

10-5/8 inches tall and 5-7/8 inches deep, published by Zojirushi in sixteenths — second-shallowest here and comfortably under any cabinet
The water tank lifts out, so you fill it at the sink and nothing ever opens upward under the cabinet
650 W is the gentlest draw here by 350 watts, with a charcoal filter Zojirushi rates for two years
Reasons to avoid
One switch, no timer, five cups, and no published brew temperature or certification
Zojirushi solves the cabinet problem the other way around: instead of hinging the lid forward, it lets you carry the tank to the tap. With 10.625 inches of height on top of that, the clearance question disappears. Five cups and a single switch is the entire feature list — for one or two drinkers in a tight kitchen, the right one.
Not the right fit if you want the coffee waiting when you walk in — see the Braun BrewSense.

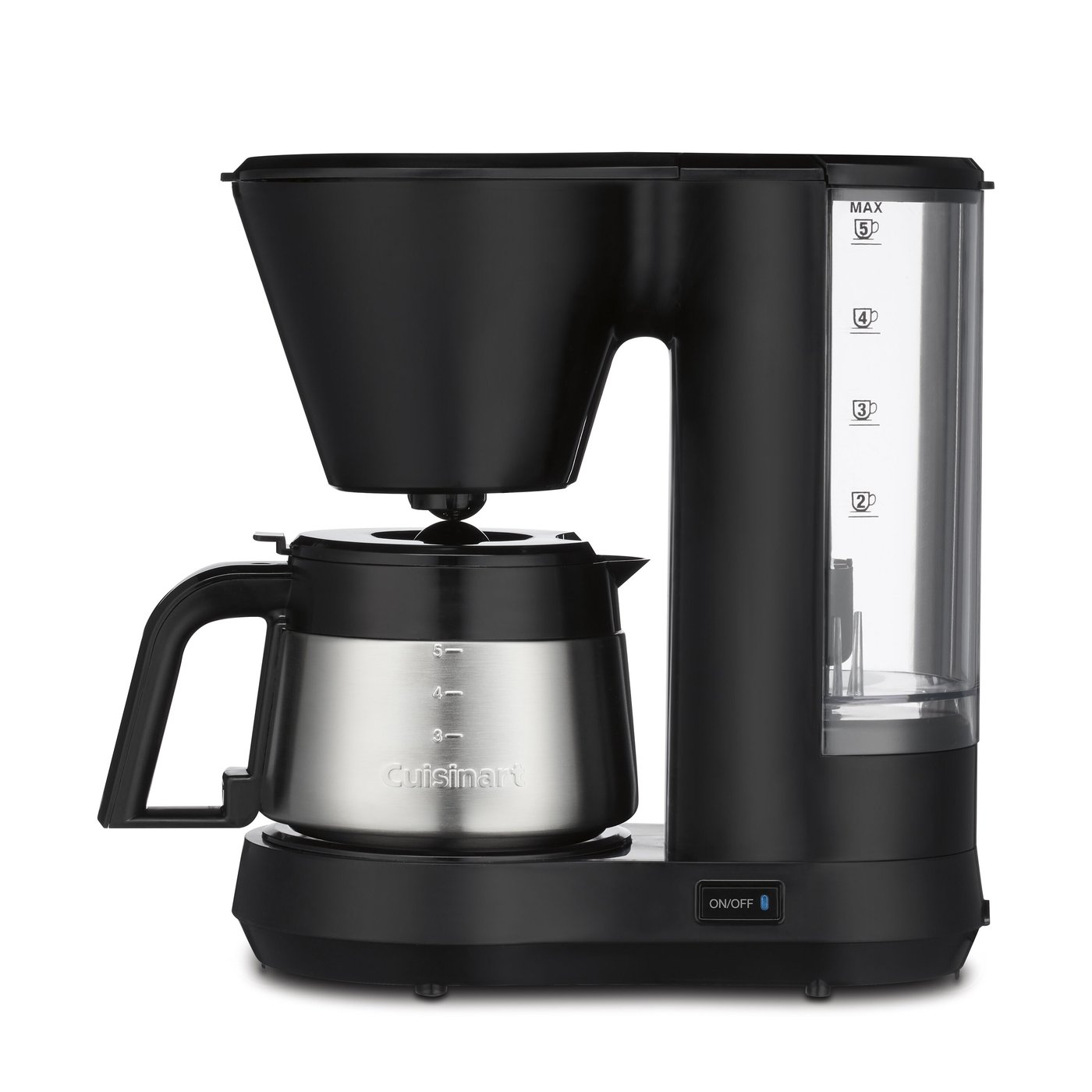

Cuisinart 5-Cup Coffee Maker with Stainless Steel Carafe
5.67 inches deep, 5 cups, no timer
Model
DCC-5570NAS
Height
10.85 in, "Fits 18-in gap": Yes — 7.15 in spare
Footprint
10.14 × 5.67 in
Capacity
5 cups
Carafe
Stainless steel
Timer
None
Power
Not published
Reasons to buy
5.67 inches deep, the shallowest machine here, so it sits against the backsplash and leaves 18 inches of counter in front of it
10.85 inches tall, with a removable reservoir you fill at the sink rather than a lid that swings up
A stainless carafe rather than glass at the cheapest band here, with Brew Pause, a 30-minute keep-warm and a charcoal filter in the box
Reasons to avoid
No timer, no brew-strength control and no published wattage — the on/off switch is the whole interface
The cheapest correct answer to a shallow counter. At 5.67 inches deep and 10.85 inches tall it fits a strip of worktop nothing else here will, and the stainless carafe means the half-pot you did not finish is not sitting on an element. Cuisinart publishes no wattage and no temperature, the same gap as the 14-cup. For two people and a narrow counter, a fair trade at this money.
Not the right fit if you need more than five cups — see the Cuisinart 14-Cup, which is 3.3 inches deeper.
We did not brew with these machines and there is no lab behind this page. What follows is exactly what we did do, so you can judge it.
Every figure in every spec block came from the manufacturer's own specification page, linked in Sources — nothing from a retailer, an aggregator or another guide. Where a brand publishes a dimension without units or axis labels, as Braun and OXO both do, we print it exactly as published and refuse to convert it into a fit claim.
Heights were compared against 18 inches of clearance and depths against the 12-inch depth of a standard wall cabinet, per KraftMaid. Brew-temperature claims were checked against SCA Standard 310-2021. Amazon pages for all seven picks were fetched and each page title checked against the product named here.
The verdict
Best overall: the Technivorm Moccamaster KBGV Select — 6.50 inches of depth and 14.00 inches of height are published numbers you can check against your own kitchen, and it is the only machine here certified by somebody other than its manufacturer. You pay for that, and you give up the timer.
Best value: the Braun BrewSense — a 24-hour timer, 12 cups and a 1,000-watt draw that shares a circuit politely. Under a low cabinet: the Hamilton Beach FrontFill at 10.3 inches, or the Zojirushi ZUTTO at 10.625 with a tank you fill at the sink. On the shallowest counter: the Cuisinart 5-Cup at 5.67 inches deep.
Before you buy any of them, measure the gap between your counter and the cabinet above it. Our five-number measuring guide takes about six minutes and tells you which half of this list you can shop from.
What is the tallest coffee maker that fits under a kitchen cabinet?
About 13 inches is the safe ceiling in a standard kitchen with 18 inches of clearance, because a rear-hinged reservoir lid has to open and no manufacturer publishes how much air that needs. The way around it is a machine that does not hinge upward at all: the Hamilton Beach FrontFill at 10.3 inches fills from the front, and the Zojirushi ZUTTO and Cuisinart 5-Cup have tanks you lift out at the sink.
Does a small coffee maker brew worse coffee?
Not necessarily, but small and cheap usually travel together, and cheap is what costs you temperature. The two machines here carrying an SCA certification are the Moccamaster and the OXO, and the three sub-11-inch machines publish no brew temperature at all.
Is a thermal carafe worth it in a small kitchen?
Yes, for a reason beyond heat: it removes the hot plate, which is both the part that scorches coffee after about 30 minutes and the part that stays hot next to everything else crowded onto the counter. The OXO 8-Cup has a double-wall vacuum carafe; the Cuisinart 5-Cup is a middle ground, stainless on a 30-minute warmer.
Can I run a coffee maker and a kettle on the same kitchen outlet?
Often not. A 20-ampere circuit at 120 volts carries 2,400 watts; the Moccamaster draws 1,475 and a 1,200-watt kettle on top of that is 2,675. The Zojirushi's 650 watts is the gentlest draw here. US kitchens must have at least two 20-ampere small-appliance circuits, so the fix is usually a different outlet.
Also considered
Breville the Precision Brewer Thermal (BDC450) — The most capable drip machine we looked at — adjustable brew temperature, thermal carafe, six modes — and 15.7 inches tall, which leaves barely two inches under a standard cabinet and none once the lid opens. It belongs on an open counter, not in this guide.
Keurig K-Mini — 4.5 inches wide is a genuinely useful number if your gap is that narrow, but it is a pod brewer with no water tank and no carafe. It is not a drip machine, so ranking it against these seven would flatter it.
OXO Brew 9-Cup Coffee Maker — Better documented than our thermal pick — it publishes a 197.6 to 204.8 °F brew range where the 8-Cup does not — but its dimension string, 15 by 8.3 by 17.2 inches, is bigger on every axis than anything else here.
Bonavita Connoisseur 8-Cup One-Touch — Dropped for a reason worth knowing before you buy one: bonavitaworld.com resolves but accepts no connection on port 80 or 443, so there is no specification page, no warranty contact and no support path we could find.
Ninja Programmable XL (CE251) — Ninja's product URLs now redirect to the SharkNinja corporate homepage with no reachable specification page, so there is no manufacturer-published height, footprint or wattage to rank it on.
