The best workbenches for a one-car garage (2026)
By Chris Y. · Founder & editor · reads the installation manual before the product page
Image: Gladiator GarageWorks

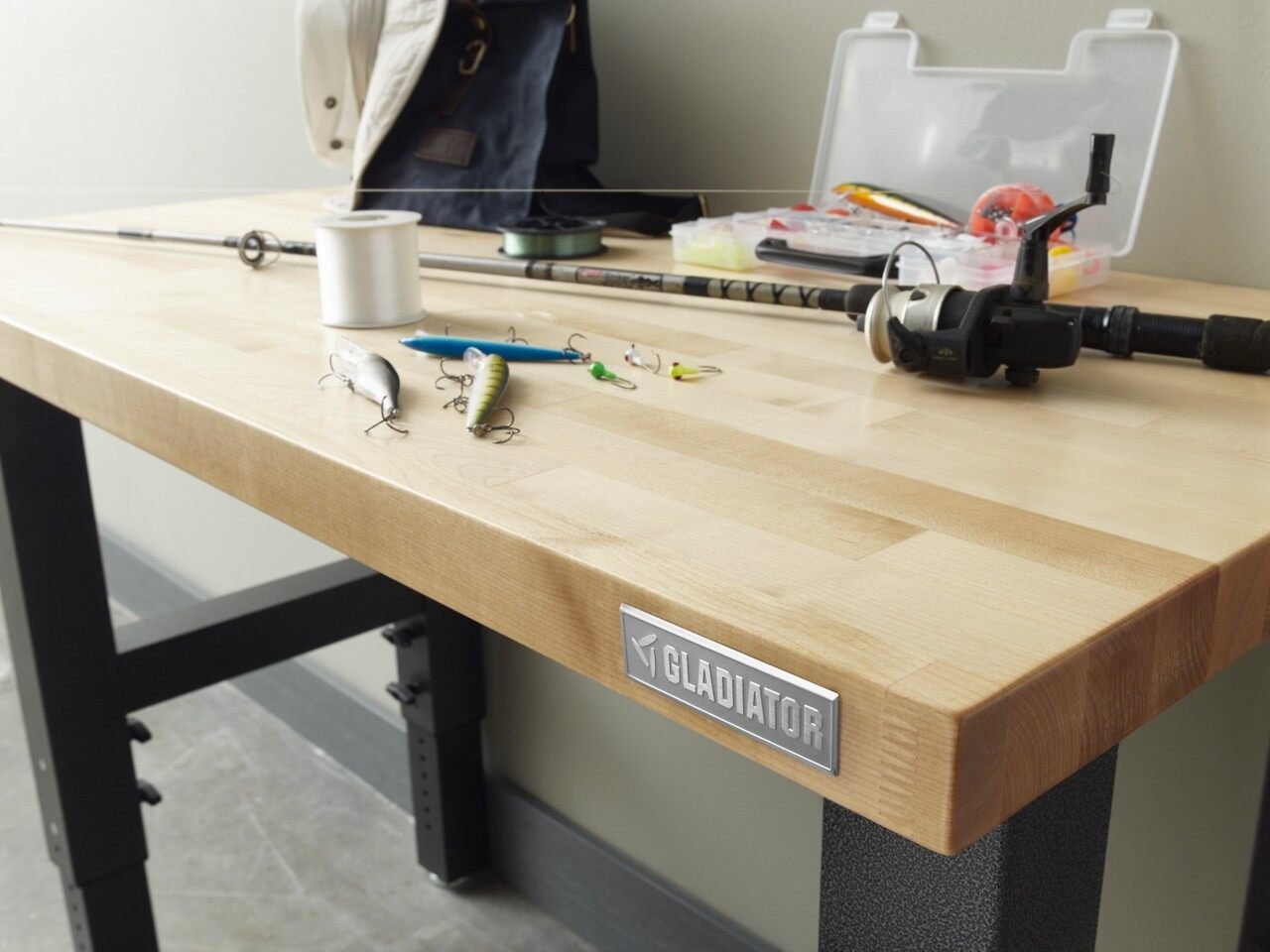

Buy the Gladiator 4-foot Adjustable Height Hardwood Workbench. Four feet of hardwood on welded steel legs, a published 3,000-pound distributed capacity, and a height that moves from 27.5 to 40.8 inches — the widest adjustment on this page, in a footprint a single bay can actually spare.
A one-car garage is roughly 12 feet wide and a car is about 6, so the bench has to live in a 3-foot strip beside a vehicle or across the end wall. That rules out the 6-foot benches most guides open with, and it makes depth and height matter more than any capacity figure.
Height is the specification nobody checks and everybody regrets. A fixed 34-inch bench is a compromise between standing work and precision work; a bench that travels from 27.5 to 40.8 inches is a table saw outfeed one weekend and a soldering desk the next. Two of the five here adjust, one folds flat to 10 inches deep, and one rolls out of the way entirely.
How to shop for a garage workbench
Footprint against a 3-foot strip
In a 12-foot bay with a 6-foot car, anything deeper than 25 inches stops a car door opening. Every depth below is the manufacturer's own figure, not an estimate.
Published top capacity, distributed
Gladiator publishes 3,000 pounds distributed on the hardwood top, Seville 1,000 and 500 on its two benches, and the Foldaway 200. "Distributed" is doing real work in all four numbers.
Adjustable height, and its range
27.5 to 40.8 inches covers seated precision work and standing assembly. A fixed-height bench is only right for one of those jobs, and you find out which after you buy it.
Power at the bench
A garage bench with no outlet becomes an extension-cord problem. Seville's workcenter publishes a six-outlet strip with two USB ports and a 5.5-foot cord; the others publish nothing, which means a cord.
Can it get out of the way
The Foldaway closes to 10 inches deep against the wall and the Mobile Workstation rolls. In a garage that also holds a car, disappearing is a feature no capacity number replaces.
Somewhere you can actually buy it
Full-size steel benches are freight items and most of this category has no retail buy box — only third-party sellers with no featured offer. Four of the five picks below are bought from the maker, and each one says so instead of sending you to a page with no price on it.
A published 3,000-pound distributed capacity, six times the Seville workcenter's rating and fifteen times the Foldaway's
The height range covers seated bench work at 27.5 inches and standing assembly at 40.8, and Gladiator states it meets ADA height requirements
25 inches deep, which still leaves room to open a car door in a standard single bay
Lifetime limited warranty on the adjustable legs — the part that actually fails on a bench
Reasons to avoid
The warranty splits — lifetime on the legs, one year on the hardwood top, so the wood is the wear item
The top is UV-coated hardwood, not steel, so welding and grinding belong somewhere else
Top price band on this page, and Gladiator's retail pages for it carry no featured offer — third-party sellers only — so the button below goes to Gladiator's own store
This is the bench that fits the room. Four feet is enough surface to take an engine part or a miter saw without becoming the thing you walk around, and the adjustment range is what makes one bench serve for both a stool-height task and a standing one.
The capacity is not a marketing number — 3,000 pounds distributed on welded steel legs means you can park a transmission on it and have the top be the limiting factor rather than the frame. Treat the hardwood as a consumable surface, seal it once a year, and the one-year top warranty stops being a complaint.

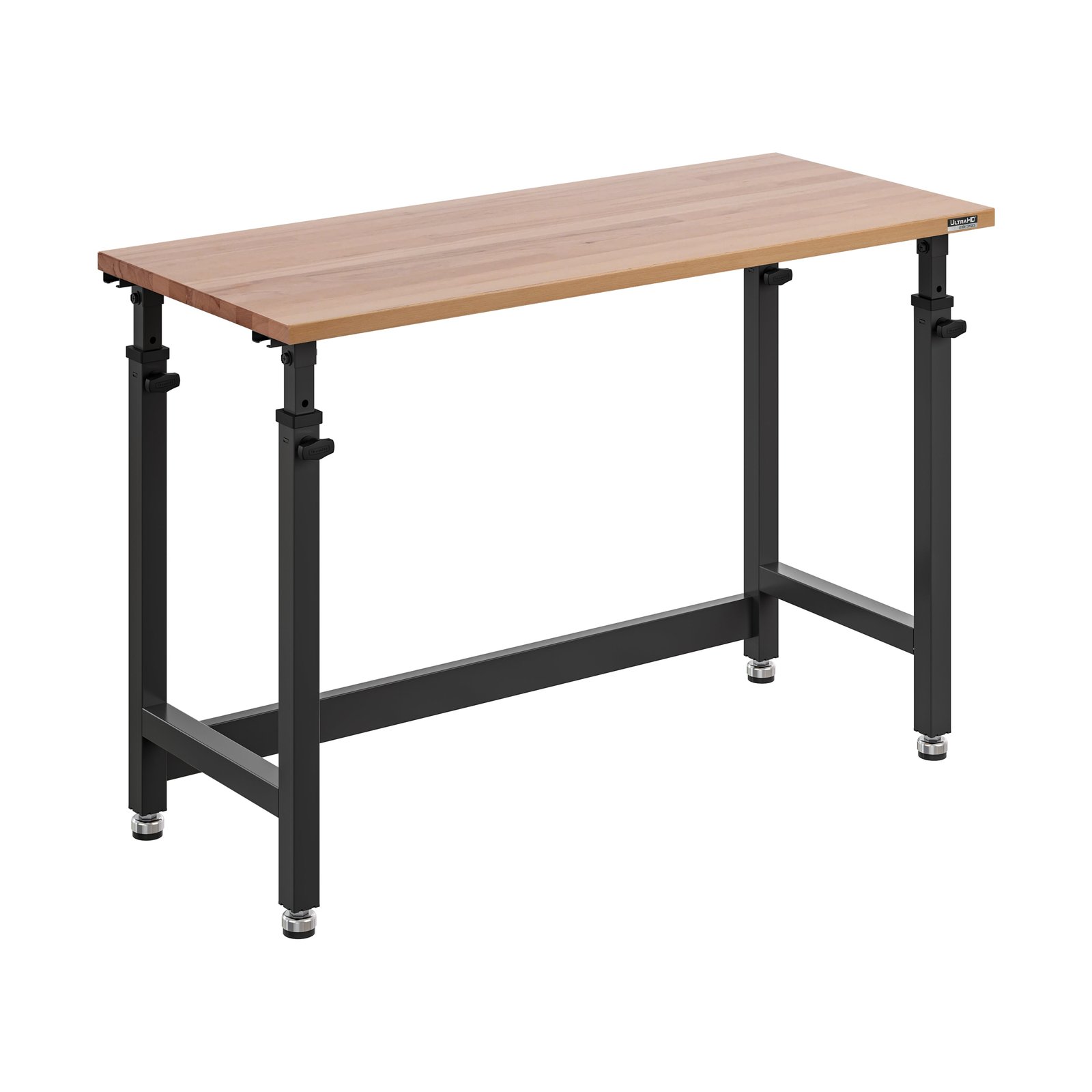

Seville Classics UltraHD Heavy Duty Workbench, 48-inch
1,000 lb, 70 lb of bench, 9 inches of range
Model
UHD20120B
Size
48 × 20 in
Height
30–39 in
Capacity
1,000 lb evenly distributed
Net weight
70 lb
Top
Solid wood
Reasons to buy
1,000 published pounds, evenly distributed, for the least money on this page — a fraction of what the Gladiator costs at Gladiator's own store
20 inches deep — five inches shallower than the Gladiator, which in a tight bay is the difference between walking past and turning sideways
Nine inches of height adjustment from 30 to 39 inches, and 70 pounds assembled, so one person can move it and set it to the job
Reasons to avoid
The height range starts at 30 inches, so it does not go as low as the Gladiator for seated precision work
A 20-inch top is shallow for anything with a long fence — a miter saw hangs over the front edge — and Seville sells it from its own store with no retail buy box behind it
For most single-car garages this is the sensible buy, and the 20-inch depth is the reason. Five fewer inches of bench is five more inches of walking room next to a car, every single day, and 1,000 distributed pounds is more than a home garage puts on a bench in a decade.
Being light is a genuine feature here. At 70 pounds this bench moves when a project needs the floor, which a 3,000-pound-rated steel-and-hardwood bench does not.
Not the right fit if you want the widest height range — the Gladiator drops to 27.5 inches.

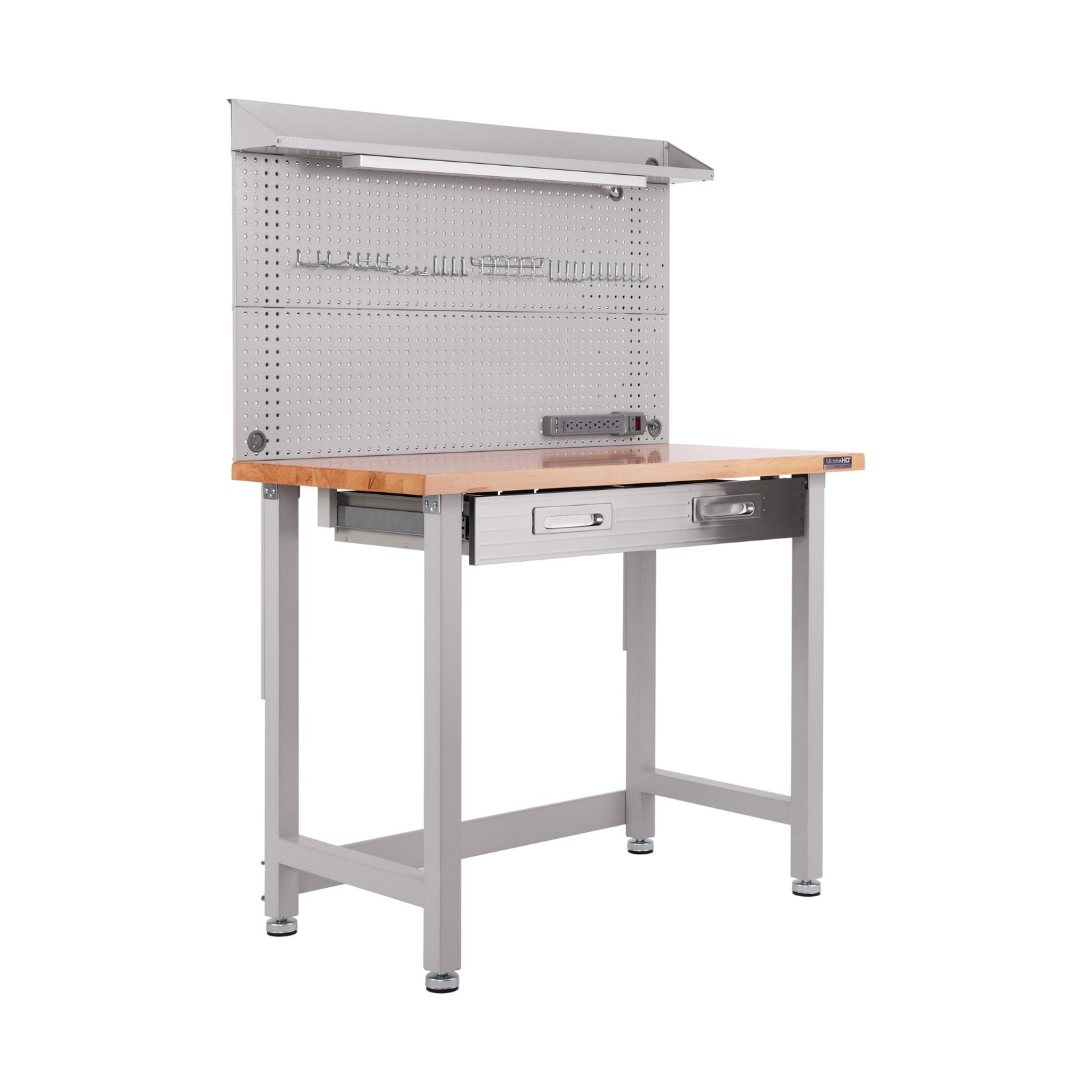

Seville Classics UltraHD Lighted Workcenter with Pegboard
500 lb, 1,000 lumens, six outlets
Model
UHD20247B
Size
48 × 24 × 65.5 in
Capacity
500 lb total
Top
Wood, 1.5 in polyurethane
Light
12 W, 1,000 lm, 4000 K
Power
6 outlets, 2 USB
Reasons to buy
A 12-watt, 1,000-lumen 4000 K LED fixture over the work surface, with UL and Energy Star listings published
Six outlets and two USB charging ports on a 5.5-foot cord, so the bench is one plug rather than a nest of extension leads
A full 48 by 24-inch steel pegboard back with a 23-piece hook set in the box
Four padded leveling feet for the sloped slab, and the only pick here with a working retail buy box
Reasons to avoid
500 pounds total is the lowest rating of the three full-size benches here
24 inches deep plus a pegboard back makes this a back-wall bench, not a side-wall one
Casters are sold separately, which is a surprise on a bench at this price band
Light and power are the two things a garage bench is always missing, and buying them separately costs more than the difference between this and a bare bench. The published light specification — 1,000 lumens at 4000 K — is unusual in this category, where most makers write "LED light included" and stop.
The 500-pound ceiling is real but rarely binding. This is a hand-tool, small-engine, bike-repair bench; it is not where the cylinder head goes.
Not the right fit if you are working along a side wall — the shallower 48-inch UltraHD bench is 20 inches deep.

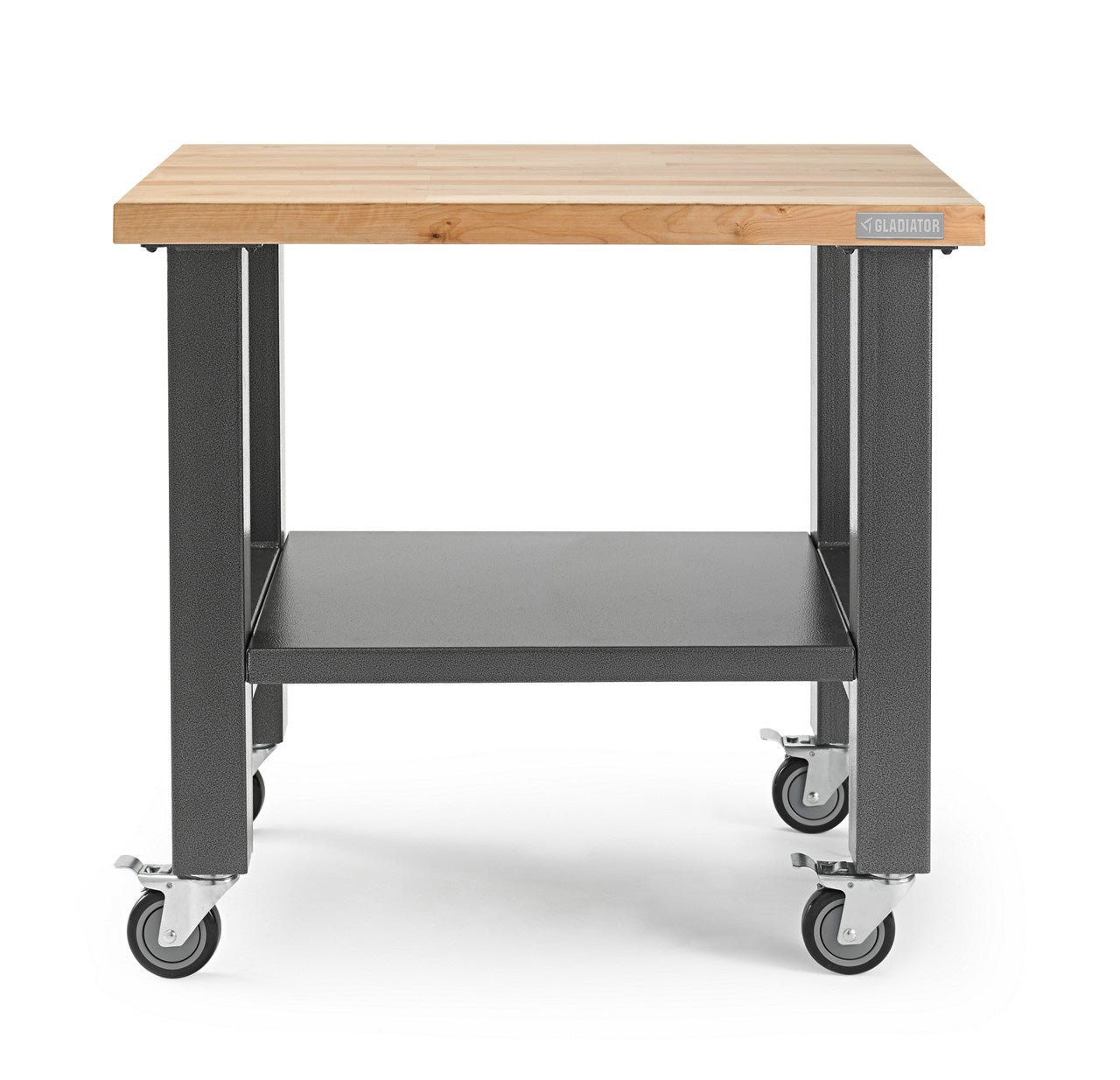

680 published pounds that rolls — the only bench here you can push out of the bay when the car comes in
All four casters swivel and all four lock, so it turns in place and then stops moving
The lower shelf reverses between flat storage and a lipped tray, and at 36 inches wide it is the smallest full-height footprint on this page
Reasons to avoid
Fixed at 34 inches high with no adjustment, which is a standing-work height and nothing else
680 pounds is a fifth of the fixed Gladiator bench's rating because the load path runs through casters, and it sits in the same top price band with no retail buy box behind it
In a garage that has to hold a car every night, a bench that moves is worth more than a bench that holds more. This one parks against the wall, rolls to the car for a brake job, then rolls back — and the reversible lipped shelf is the detail that earns it a place, because the alternative is parts on the floor.
Casters cost you height adjustment and capacity, and the 34-inch fixed height is the honest limit. Buy it as a second, movable surface beside a fixed bench rather than as the only bench in the garage.
Not the right fit if this is your only bench — a fixed 4-foot Gladiator adjusts to the work.

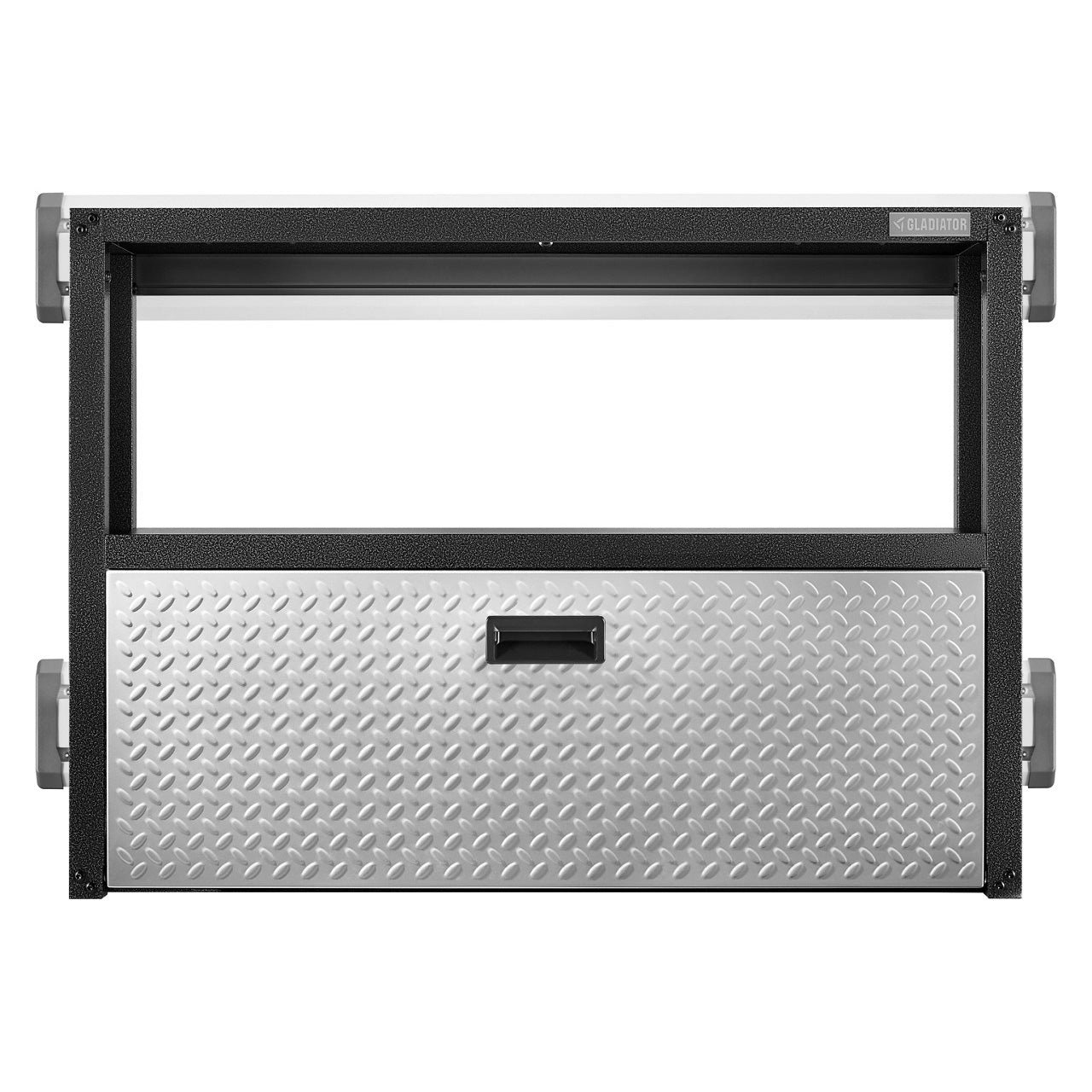

Ten inches deep when closed, so the bench occupies wall rather than floor and a car still fits
A 1.5-inch solid stainless top that shrugs off solvents and does not need sealing like hardwood
A cord access port built into the cabinet, which makes it the tool-battery charging station as well as a bench
10-year limited warranty, matching Gladiator's cabinet line rather than its bench line
Reasons to avoid
200 pounds total, with 50 on the fold-down surface — this is a hand-tool bench, not an engine stand
It mounts to the wall, so the studs have to be found and the height committed to
No retail featured offer, like the rest of the Gladiator line: the button below goes to Gladiator's own store
For a garage where the car wins every argument, this is the bench that still fits. Closed, it is a 10-inch-deep wall cabinet. Open, it is a stainless work surface at a fixed height with the tools already behind it — and it closes again when the car comes home.
The published numbers set the job. Fifty pounds on the fold-down shelf is a drill, a vice-free repair, a battery charger and a parts tray. Anything heavier belongs on one of the floor-standing benches above.
Not the right fit if you want to clamp or hammer on it — a 200-pound wall unit is not the 3,000-pound Gladiator bench.
Capacities, footprints, height ranges and warranty terms were copied from Gladiator's and Seville Classics' own product pages in September 2026, including the qualifier each brand attaches to its capacity figure.
Depth was tested against the geometry of a single-car bay: about 12 feet wide, a car about 6 feet wide, which leaves roughly 3 feet a side before a car door stops opening. That is why a 20-inch bench beats a 24-inch one here even when the 24-inch bench is better equipped.
Benches wider than 60 inches were excluded regardless of their ratings, because they do not fit the room this guide is about.
Products whose maker publishes no weight capacity at all were left in the rejects rather than the picks, however well-known the brand.
Every retail page was opened in September 2026 and checked for a working buy box. Four of the five benches had none — third-party sellers with no featured offer — so their buttons go to the maker, and each pick says so.
The verdict
Best overall: the Gladiator 4-foot Adjustable Height Hardwood Workbench — 3,000 published pounds, 13 inches of height range, and a 25-inch depth a single bay can live with.
Best value is the 48-inch Seville UltraHD — the cheapest bench here and 1,000 pounds at only 20 inches deep; the Seville lighted workcenter is the one to buy if you have no power at the bench; and if the car wins every argument, the Gladiator Foldaway closes to ten inches. Measure the strip beside your car before you read another capacity number — that measurement disqualifies more benches than weight ever will.
Four feet wide and 20 to 25 inches deep. A 12-foot bay with a 6-foot car leaves about 3 feet each side, and a 25-inch bench keeps roughly 11 inches of walking room — enough to open a car door part way.
What height should a garage workbench be?
Between 34 and 38 inches for standing work, and around 30 inches if you work seated. The Gladiator bench here adjusts from 27.5 to 40.8 inches and the Seville from 30 to 39, which is why both suit a garage that does more than one kind of job.
How much weight can a garage workbench hold?
From 200 to 3,000 published pounds on this page. The wall-mounted Foldaway lists 200 pounds, the lighted workcenter 500, the rolling workstation 680, the 48-inch Seville 1,000 and the Gladiator hardwood bench 3,000 distributed.
Is a hardwood or steel workbench top better for a garage?
Hardwood is kinder to tools and takes a beating, but it absorbs solvent and needs sealing — Gladiator warrants its top for one year against a lifetime on the legs. Stainless, like the Foldaway's 1.5-inch top, cleans up after brake fluid and never needs finishing.
Do I need a workbench with outlets?
You need power at the bench; whether it is built in is a price question. The Seville workcenter publishes six outlets, two USB ports and a 5.5-foot cord. Bolting a power strip to a bare bench does the same job for less, as long as it is a strip rated for the tools you plug into it.
Can a workbench go on a sloped garage floor?
Yes, if it has leveling feet. Garage slabs slope toward the door for drainage, and both Seville benches here publish adjustable leveling feet — the Seville workcenter's are padded. A bench without them rocks under hand pressure.
Also considered
Bora Centipede folding work stands — A genuinely clever answer to a small garage — the 4 ft × 4 ft unit folds to 8.75 by 9.25 by 38.5 inches and stands behind a door. It stays out of the picks because the product page publishes a folded size, a SKU and no weight capacity, and this guide ranks on published capacity.
Six-foot and eight-foot workbenches — Gladiator's own 6-foot bench carries the same 3,000-pound rating as the 4-foot version, and it is the better bench in a two-car garage. In a single bay it turns the walking strip into a squeeze.
Workbenches advertising 2,000-pound capacities from sellers with no brand site — A large part of this category is the same rubberwood-top bench under a dozen names, each claiming 2,000 pounds with no specification sheet, no warranty document and no manufacturer behind the number.
Plastic folding utility tables — They publish 300 to 500-pound distributed ratings and cost very little, and for a potting bench that is fine. They flex under a hammer blow and no clamp holds on a rolled plastic edge, which rules them out as a tool bench.
