The 5 best metal pegboard kits for a garage (2026)
By Chris Y. · Founder & editor · reads the installation manual before the product page
Image: Wall Control

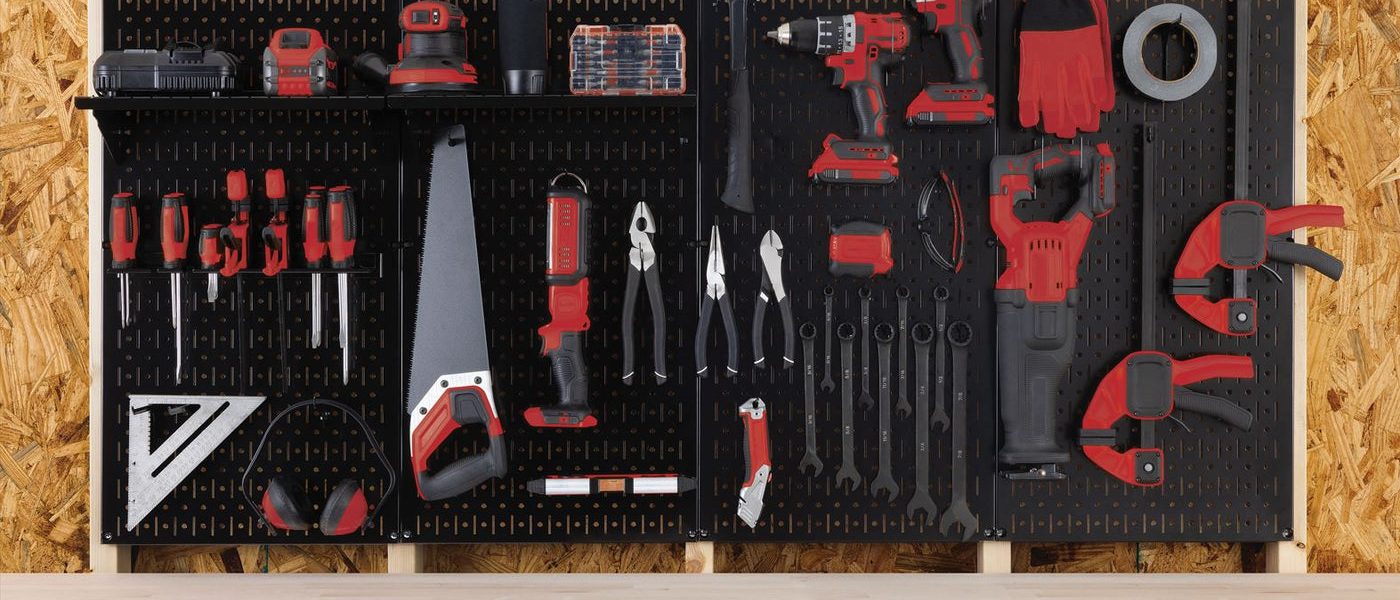

Buy Wall Control. It is the only brand here that says in writing what its panels hold — 100 pounds a panel on drywall anchors, 200 into studs, 10 to 15 pounds on a hook engaging two slots — and the only board that takes both its own slotted hooks and the conventional quarter-inch pegs already in your drawer.
Two numbers decide a pegboard purchase, the hanging load and the hole pitch, and no manufacturer publishes both. Wall Control publishes loads and no pitch; Triton a pitch to the half inch and no load; OmniWall neither. Wall Control also argues that a single idealised laboratory rating is potentially misleading — which is why the "350 lbs per board" figure attached to competing steel boards is worth nothing.
If your tools are heavy and awkward rather than numerous, look at Triton's LocBoard instead: 18-gauge steel, square holes on 1-1/2 inch centers, and hooks that lock in so the hook does not come off the wall with the tool. You give up every round peg you own.
How to shop for metal pegboard
Does the brand publish a hanging load
One of six does. Wall Control publishes per-panel and per-hook recommendations; Triton says only "highest industry load ratings"; OmniWall says nothing at all.
Hole shape, and whether your hooks fit
Wall Control takes slotted hooks and quarter-inch pegs; LocBoard is square-hole only; DuraBoard is round quarter-inch on 1-inch centers. The wrong choice makes your hook collection scrap.
Gauge, and whether it needs furring strips
Wall Control runs 20-gauge, LocBoard 18-gauge in a 9/16-inch boxed section, OmniWall 18-gauge; thicker steel is stiffer between fixings, which stops a loaded board bowing. Wall Control's 3/4-inch return flange and the boxed LocBoard mount straight to the wall, where DuraBoard and hardboard need a spacer kit or battens.
What is actually in the kit
A bare panel pack and a kit with 24 hooks, two shelves and three bins are different purchases, and Triton is the only brand itemising its hook assortment.
Best overall
Image: Wall Control
Wall Control Metal Pegboard Pack
6 published load figures, 0 hooks included
Model
30-P-3232 B
Gauge
20-gauge steel
Holes
Slots plus 1/4 in round
Load
100 lb/panel on anchors; 200 lb into studs
Coverage
Two 32 × 16 in panels, 7 sq ft
Included
12 screws, 12 anchors; no hooks
Reasons to buy
The only pegboard here whose maker publishes hanging loads — 100 pounds a panel on anchors, 200 into studs, 10 to 15 per hook on two slots, 2 pounds a plastic bin
Takes both slotted accessories and conventional quarter-inch pegs, so no existing hook becomes scrap
A patented 3/4-inch return flange spaces the panel off the wall with no framework, and the mounting holes land on 16-inch stud centers
Magnetic steel, made in the USA, under a limited lifetime warranty
Reasons to avoid
No hooks in the box at all — this is bare panels, and a starter hook set is a second purchase
Wall Control publishes no hole pitch anywhere, so you cannot check spacing against an accessory before it arrives
Every other brand here hides behind an adjective or borrows a number from a retailer. Wall Control publishes six separate figures — per panel two ways, per hook two ways, per shelf, per bin — then a paragraph on why single headline ratings are dangerous. The dual hole pattern is the other reason it wins: slotted hooks grip harder, round pegs cost nothing, and this is the only board where you do not choose.
Not the right fit if you want the hooks included — the 4 ft Wall Control kit is the same panels with shelves, bins and about 24 hooks.

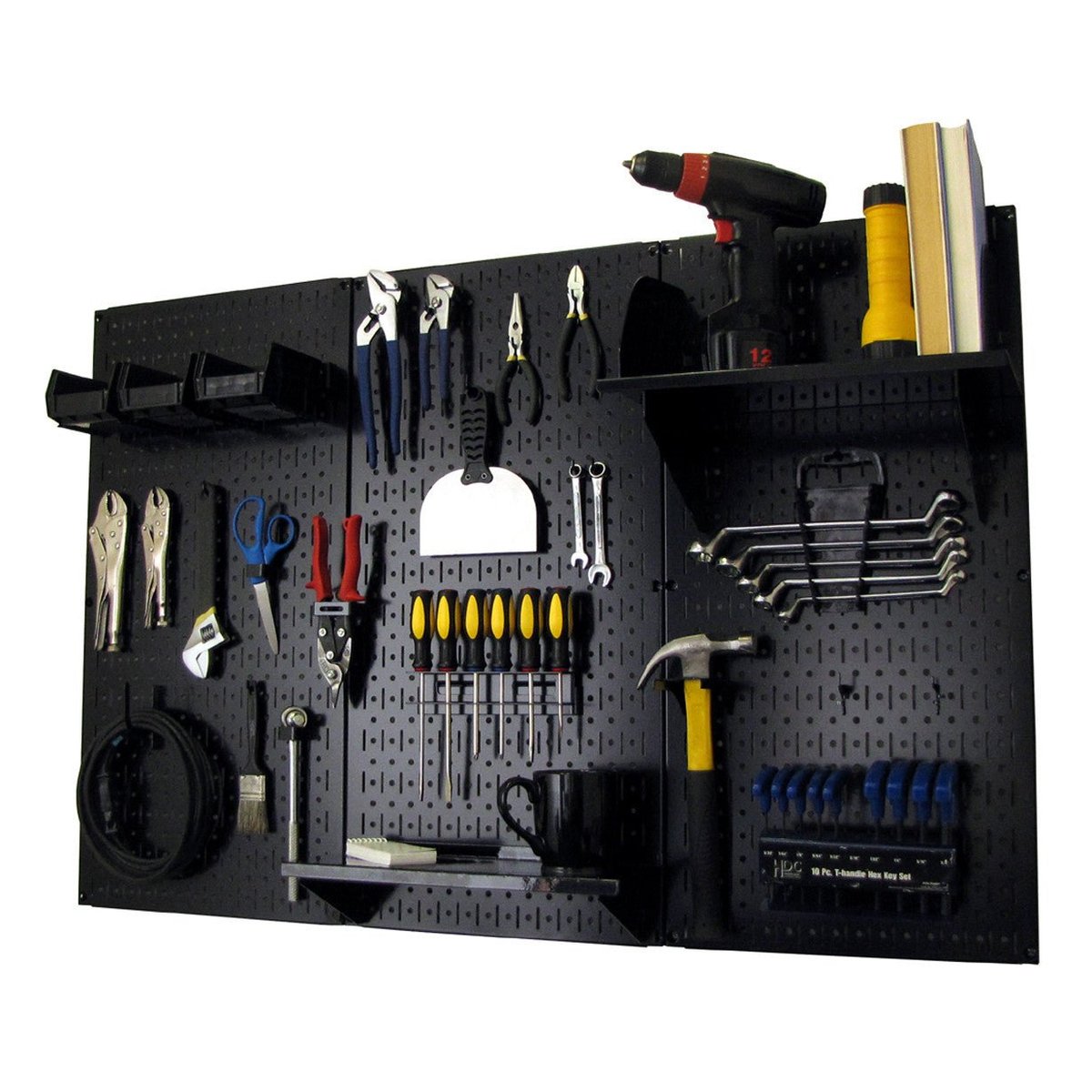

Three panels covering 48 × 32 inches, plus two shelves, three bins, a screwdriver holder, a hammer holder and twenty more hooks
Nothing else to buy — mounting screws and drywall anchors are in the box
Same 20-gauge steel, dual hole pattern and published loads as the bare panels, in thirteen panel colors
Reasons to avoid
Wall Control publishes shelf and bin limits that surprise people — 10 to 20 pounds per shelf assembly and 2 pounds per plastic bin, so the bins are for fasteners, not for paint
Sold under two different names on Wall Control's own site with the same part number, which makes comparison shopping needlessly confusing
The box to send someone who has never organized a wall: pegboard with the shelves, bins, hooks and screws in it, so an empty wall becomes a hung wall in one evening and one trip. Watch the shelf and bin numbers — a 2-pound bin limit reads like a typo until you remember these hang off slots in sheet steel.
Not the right fit if you already own a pile of hooks — buy the bare panel pack and save the kit premium.

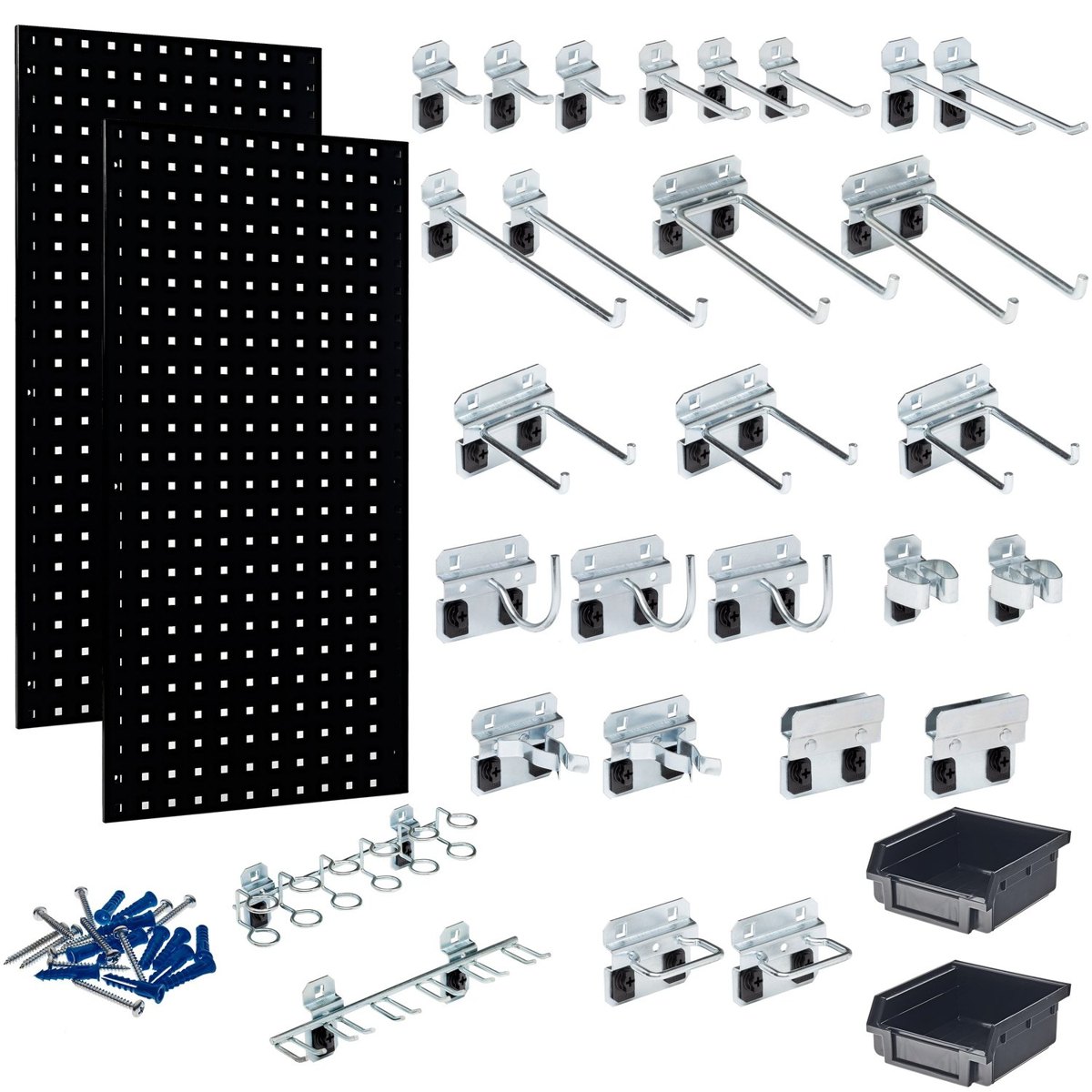

18-gauge steel in a boxed 9/16-inch section, stiffer than any flat panel here — the reason it takes long, heavy, odd-shaped items
The only published hole pitch on this page, square holes at 1-1/2 inches on center
LocHook 50000-series hooks lock into the square holes, so the hook stays on the wall when the tool comes off
Triton itemises the kit down to the hook — single and double rod hooks at four lengths, curved hooks, spring clips, a hammer and plier holder, a multi-prong and a multi-ring holder, plus two hanging bins and all the mounting hardware
Reasons to avoid
No weight capacity published at all — only the phrase "highest industry load ratings" — and the "350 lbs per board" figure online comes from retailers
Square holes at 1-1/2 inch centers reject every conventional quarter-inch peg you own
Triton's own page counts 28 LocHooks in this kit and the retail page counts 30; take the maker's number
Locking hooks are the genuine advantage, as anyone who has pulled a hook off the wall along with a hand saw knows: square holes grip mechanically rather than by friction, and boxed 18-gauge does not flex between fixings. Two boards with the full hook set is now the only way to buy it — the bare two-packs and the single-board kits all lost their buy box by 12 September 2026. The missing load figure is why it is not the overall pick: a number beats a feel.
Not the right fit if you own a box of quarter-inch pegboard hooks — only Wall Control takes both types.

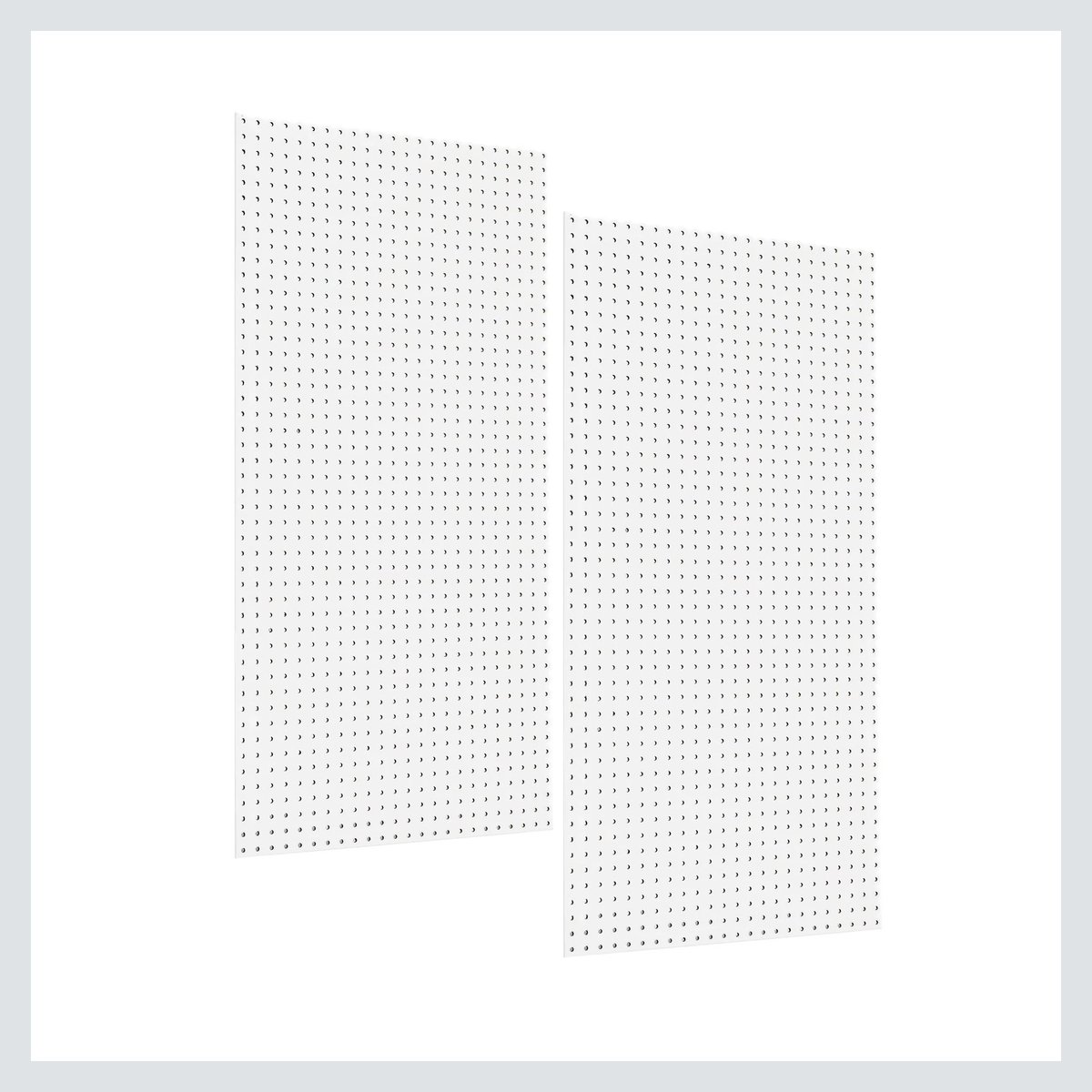

The only board here you can hose down, rated for clean rooms and factory floors as well as garages
Round quarter-inch holes on 1-inch centers, so standard hooks fit
16 square feet in a two-pack, the most wall area per box here, and it will not rust, rot or warp
Reasons to avoid
No published weight capacity at all; the "250 lb per board" figure circulating online is retailer copy
Needs the DuraHook 70016 spacer kit or wood framing behind it, mounting hardware is not stated as included, and the black version is ABS rather than polypropylene
Metal is the right default for a garage wall, except where it is not: a damp detached garage, a wall that gets splashed, a workshop that gets hosed out. Budget the spacer kit at the same time — without it you are screwing a quarter-inch sheet flat to the wall and no hook fits through.
Not the right fit if your garage is dry and you want a published load figure — that is Wall Control.

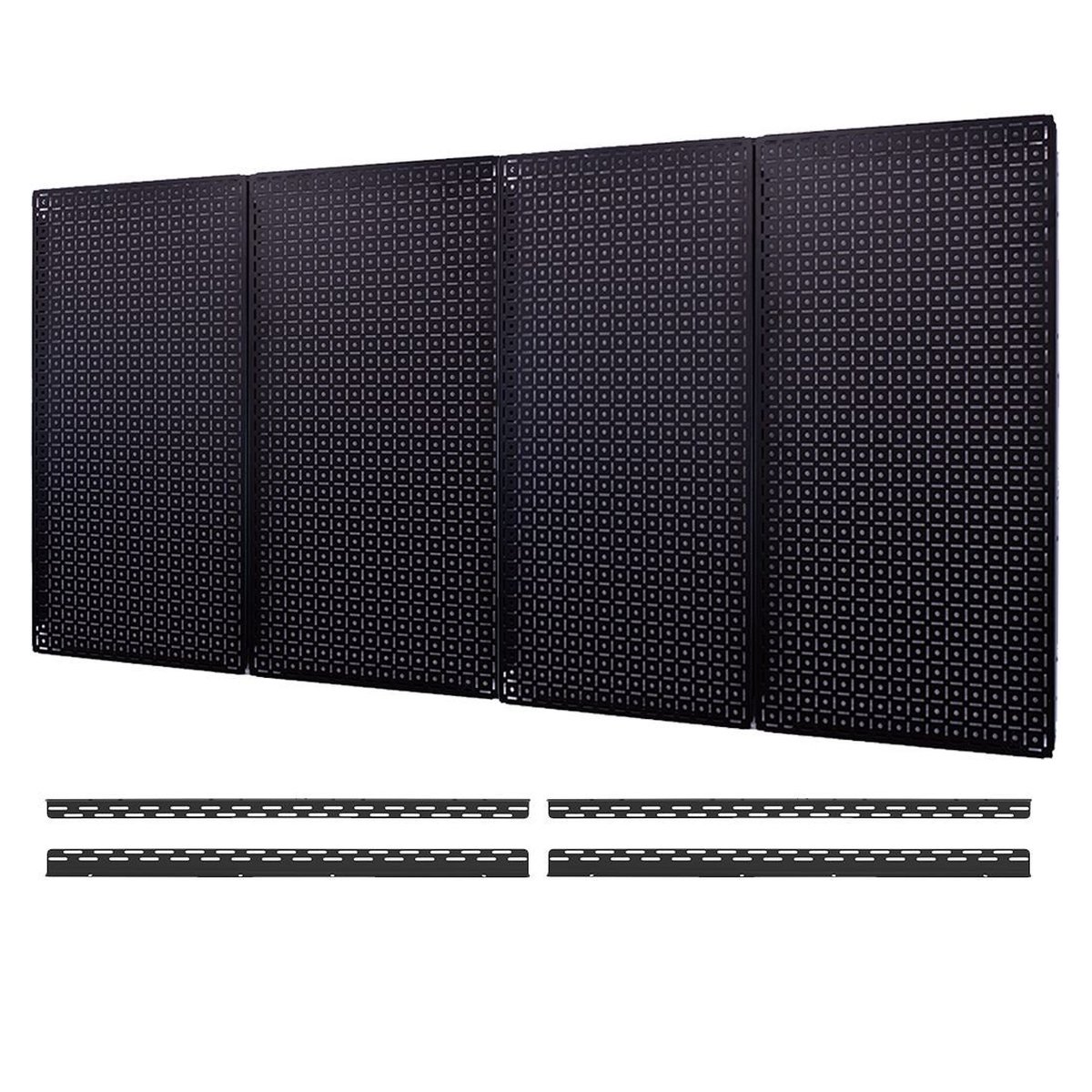

Panels hang on cleats rather than screwing through the face, so one lifts off and moves without patching holes
18-gauge steel, the same as Triton's LocBoard and heavier than Wall Control's 20-gauge
Takes conventional quarter-inch accessories as well as OmniWall's own 42-piece range
Reasons to avoid
No published weight capacity, hole pitch, warranty or country of manufacture — the thinnest documentation on this page
Both the single panel and the 4-pack read as out of stock on OmniWall's own site in September 2026, and the cleats are an extra part to align
The cleat system is a genuinely good idea nobody else here offers. If your layout is still moving — a bench that might shift, a bay that might become a workshop — unhooking a panel and rehanging it three feet along is worth real money. Everything else is a leap of faith.
Not the right fit if you want documentation you can check — every published number on this page comes from Wall Control.
Gauge, hole pattern, contents and load figures came only from the manufacturers' own pages — wallcontrol.com, tritonproducts.com, omniwallusa.com — collected in September 2026; specs change, so check the brand page before you buy. Numbers that exist only in retailer copy appear in the reasons-to-avoid, never in the spec table.
Both deciding specifications — hanging load and hole pitch — were checked on all six. One brand publishes loads, one publishes pitch, and none publishes both. Kit contents were transcribed from each brand's own list.
Mounting method was checked for whether a board needs furring strips or a spacer behind it, because that is a hidden cost and an extra inch of depth.
The verdict
Best overall: Wall Control's metal pegboard — the only brand publishing a hanging load, the only board taking both slotted hooks and quarter-inch pegs, no framework needed, lifetime warranty. The bare two-panel pack if you own hooks, the 4 ft kit if you do not.
For heavy, awkward tools it is Triton's LocBoard: 18-gauge boxed steel and hooks that lock into square holes, at the cost of every round peg you own and any published capacity. And ignore the ratings quoted on retail pages — 350 pounds a board, 250 pounds a board, 1,200 pounds are published by none of the manufacturers who made those boards.
Only one manufacturer will say. Wall Control recommends no more than 100 pounds a panel on drywall anchors, 200 into studs, 10 to 15 pounds on a hook engaging two slots and 2 per plastic bin; Triton and OmniWall publish no figure at all.
Is metal pegboard better than hardboard?
For a garage, yes — Wall Control's 20-gauge steel is described by its maker as over ten times stronger than conventional pegboard, and neither steel nor polypropylene absorbs moisture. Triton's own hardboard publishes no hanging-load number and needs wood framing behind it.
Does pegboard need furring strips or a spacer behind it?
It depends on the board. Wall Control's 3/4-inch return flange and Triton's 9/16-inch boxed LocBoard stand themselves off the wall; flat quarter-inch boards need either the DuraHook 70016 spacer kit or wood battens, or the hooks have nowhere to go.
Will my old pegboard hooks fit a new metal board?
On Wall Control and OmniWall, yes — both accept conventional quarter-inch pegs. On LocBoard, no: square holes at 1-1/2 inch centers take LocHook 50000-series hooks only, though DuraBoard uses the classic round pattern at 1 inch on center.
Also considered
Triton LocBoard bare two-packs and single-board kits (LB18-BK, LB18-1WH-Kit, LB18-S) — The same 18-gauge boards as the kit above, sold without hooks or as a one-board starter. Six of these ASINs were opened on 12 September 2026 and not one had a buy box — the two-board kit is the only LocBoard configuration still selling through Amazon, so that is the one this page links.
Triton Products HDF Pegboard (TPB-2) — The best hardboard money buys, and it still loses. The published 5,000 psi modulus of rupture is a bending-stress figure, not a hanging load; it needs framing behind it, and it is a wood product in a room that gets damp.
Ultrawall metal pegboard, 48 × 36 in — The brand site publishes no dimensions, gauge, hole pattern, warranty or load figure — the whole specification is three sentences of adjectives, and the "1,200 lbs" capacity attached to it has no manufacturer page behind it.
Gladiator GearWall panels — Returned constantly by searches for garage pegboard and not pegboard at all — GearWall is slatwall, horizontal slots rather than holes, rated 50 pounds a square foot. It is covered in the wall track and slatwall guide, linked below.
