The 6 best heavy-duty garage shelving units (2026)
By Chris Y. · Founder & editor · reads the installation manual before the product page
Image: Seville Classics
Buy the Seville Classics UltraDurable 5-Tier: 800 pounds a shelf on its leveling feet, NSF certification, a 10-year warranty, and — unusually in this category — an Amazon buy box you can actually use. Gladiator's welded 77-inch rack is the stronger shelf and it is still here, but only Gladiator sells it.
The short list
Best overallSeville Classics UltraDurable 5-Tier NSF Shelving $$$800 lb a shelf on feet, 500 lb total on wheelsCheck price at Amazon
Three different numbers are sold as "capacity" here and they are not comparable — per shelf, total, and total-but-only-on-the-leveling-feet. A unit titled "2,000 lbs Capacity" holds 400 pounds a shelf. Across the units checked the per-shelf spread runs 400 to 2,500 pounds, and two brands publish what happens to the rating once the unit rolls: it falls to 500 pounds for the whole rack.
Shelving is the only storage on this site that needs nothing from your building: no joists, no studs, no anchors. If your garage has plaster, steel studs, masonry walls or trusses you do not trust, a free-standing unit is the answer and an overhead rack is not.
How to shop for garage shelving
Per-shelf capacity, with its qualifier
Seville publishes 800 pounds a shelf "on leveling feet" and 500 pounds total on its own casters — same unit, same box, a factor of eight apart.
Total vs per-shelf
VEVOR's title says 2,000 pounds; its spec list says 400 a shelf across five shelves. Both are true, and only one tells you what a single shelf takes.
Deck material
Wire lets dust through and takes small items badly; particleboard sags if it gets wet; laminate wipes clean. Pick for what you store, not for the photo.
Footprint against a real wall
24 inches deep is standard and eats two feet of bay. A 12.6-inch unit holds far less but leaves a walkway, which in a one-car garage is the whole decision.
Boltless or bolted
Rivet-lock and snap-together units go up in under an hour with a mallet; bolt-together units take an evening and hold alignment better loaded.
Anti-tip and leveling
Garage floors slope toward the door by design, so leveling feet are not a luxury on a tall loaded rack. Trinity ships an anti-tip kit as standard; Sakugi includes a wall fixing kit.
Best overall
Image: Seville Classics

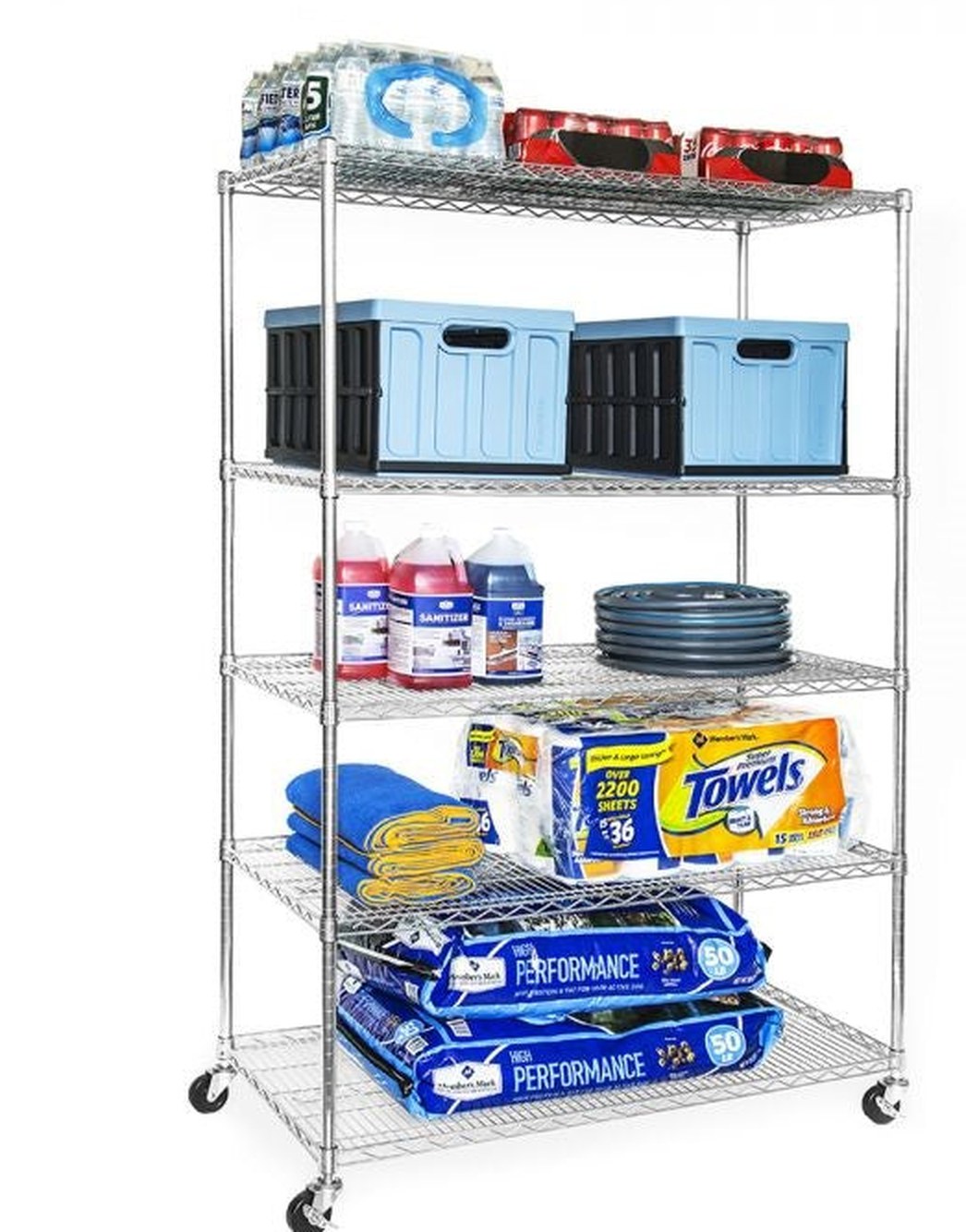

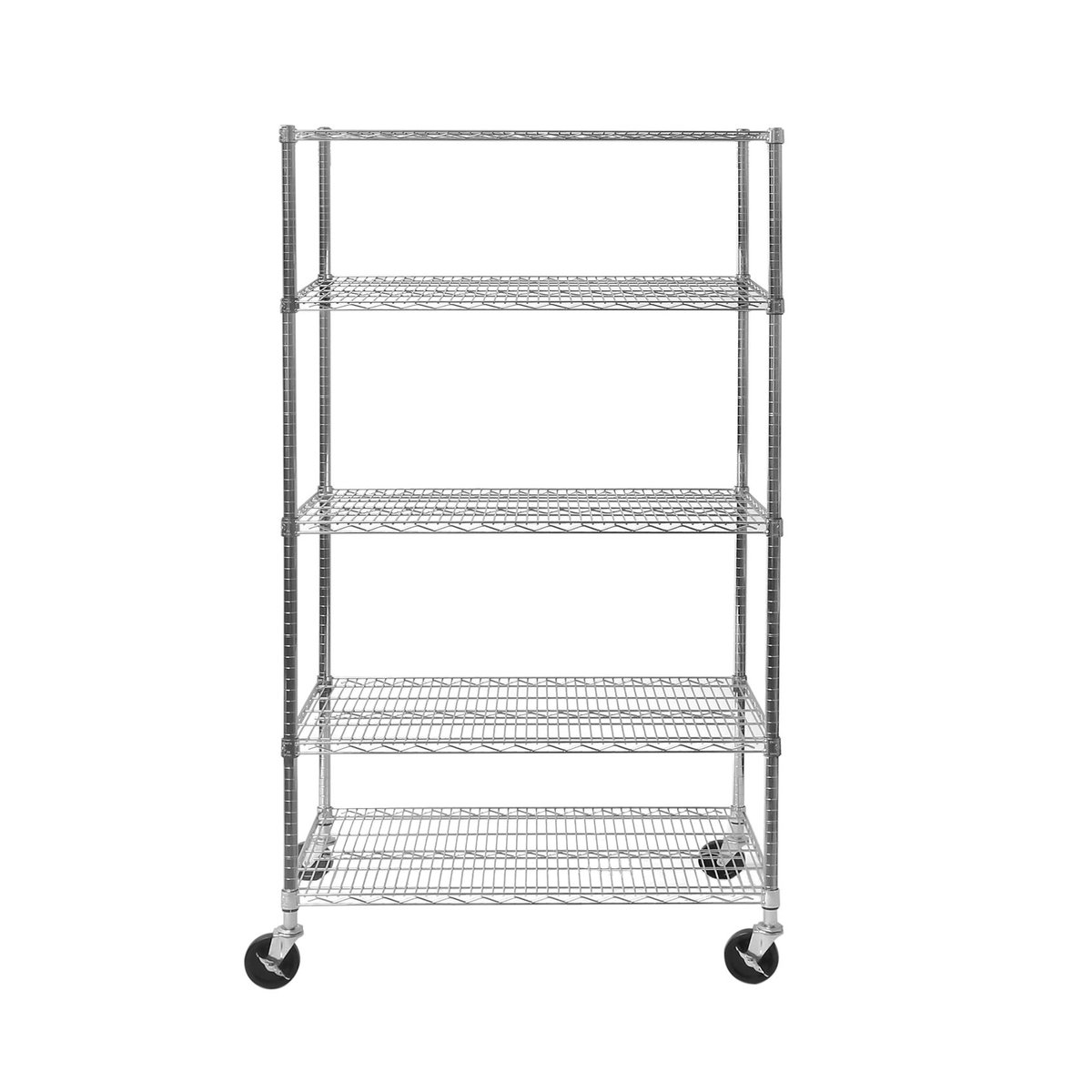

Seville Classics UltraDurable 5-Tier NSF Shelving
800 lb a shelf on feet, 500 lb total on wheels
Model
WEB564
Per shelf
800 lb on leveling feet
Total
4,000 lb on feet / 500 lb on wheels
Size
48 × 24 × 76 in (72 in on feet)
Deck
Steel wire, 5 tiers
Warranty
10-year limited
Reasons to buy
The only unit publishing both configurations honestly — 4,000 pounds total on leveling feet, 500 on its own casters
1-inch posts and 1-inch height increments, the finest adjustment in this group
NSF-certified to NSF/ANSI Standard 2, the commercial kitchen standard and a real third-party check
Nothing to swell, rot or delaminate, under a 10-year limited warranty
Reasons to avoid
The included casters cut the whole unit to 500 pounds — on wheels this is an expensive 100-pound-a-shelf rack
Wire shelves eat small parts; anything smaller than a fist needs a bin
Seville publishes 800 pounds a shelf on leveling feet and 500 pounds total on wheels in the same spec block; every rolling wire rack has the same physics, and Seville is the one that says so. That is why it wins: the construction, the number and the remedy line up, and you can buy it from Amazon today — which, in a category where full-size steel furniture ships freight, turns out to be the rarest feature of all. No wood anywhere, NSF certification to NSF/ANSI 2, 1-inch adjustment, ten years of warranty.
Not the right fit if you need one shelf to take a pallet's worth — the Gladiator 77-inch publishes 2,000 pounds a shelf, though only Gladiator sells it.
2,000 pounds a shelf and 8,000 total, the highest ratings here, on a welded rather than bolted frame
77 inches of span in one unit — a full bay wall in one purchase instead of two units and a seam
Lifetime limited warranty, where this category offers one year, ten years, or nothing
Tool-free snap-and-lock assembly on a dual-slot profile that takes extra shelves later
Reasons to avoid
Top price band but not the dearest here, and at 77 × 24 inches a serious commitment of floor
No "evenly distributed" qualifier, no upright gauge, no adjustability increment — big numbers, thin documentation
No Amazon buy box on 12 September 2026 — no Gladiator shelving ASIN had one, which is normal for steel furniture that ships freight
The welded frame separates this from everything else here. Every other unit on this page is riveted, bolted or snapped together, so the joints are the weak point; Gladiator welds the frame and puts a lifetime warranty behind it. Buy it from Gladiator rather than hunting an Amazon route: every retail page for it is dead, and the brand's own store had it in stock when this was checked. Put it in the bay where the heavy things live.
Not the right fit if you want to buy it in one click — the Seville is the heaviest-rated unit here you can actually add to a cart.

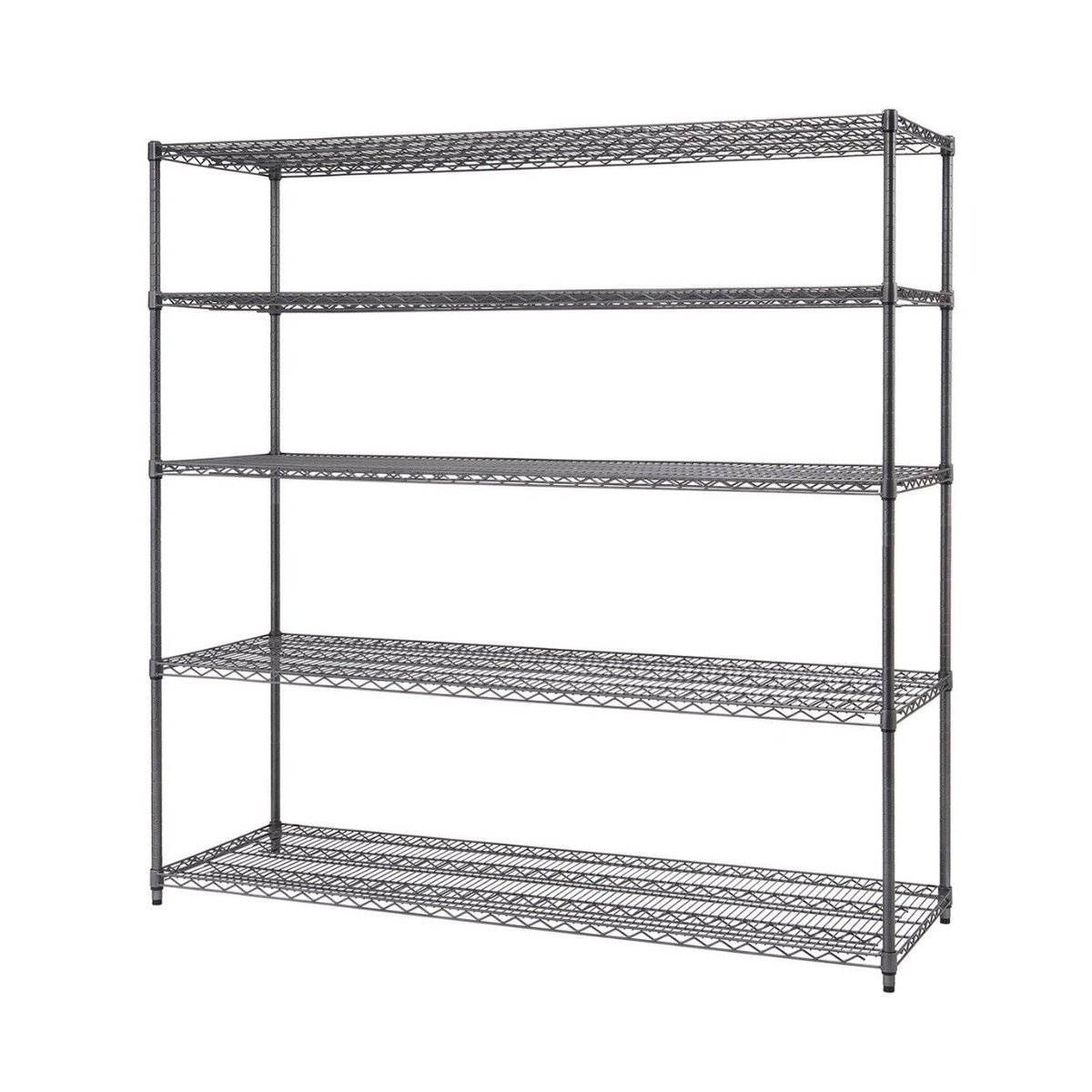

72 inches of shelf in one unit — six feet of wall with no seam and no second set of posts eating floor
1,000 pounds a shelf, qualified "on feet levelers" — Seville's honesty at a much higher number
Anti-tip kit standard in the box, not an accessory, with the levelers preinstalled
NSF certified, 1-inch adjustment, and a parts count published down to the 42 slip sleeves
Reasons to avoid
A 1-year limited warranty, shortest on this page, on the second most expensive unit
No confirmable Amazon route, so this is a brand-direct purchase, and the box is 129.6 pounds and 72 inches long
The 72-inch span is the reason to buy it: two 48-inch units put uprights in the middle of the run and leave a gap where nothing sits flat, where one 72-inch unit at 1,000 pounds a shelf solves a bay wall in a single purchase. The 1-year warranty against Seville's 10 and Gladiator's lifetime is the cost of that span.
Not the right fit if you want the longest warranty at this width — the Gladiator 77 inch covers even more wall with a lifetime term.

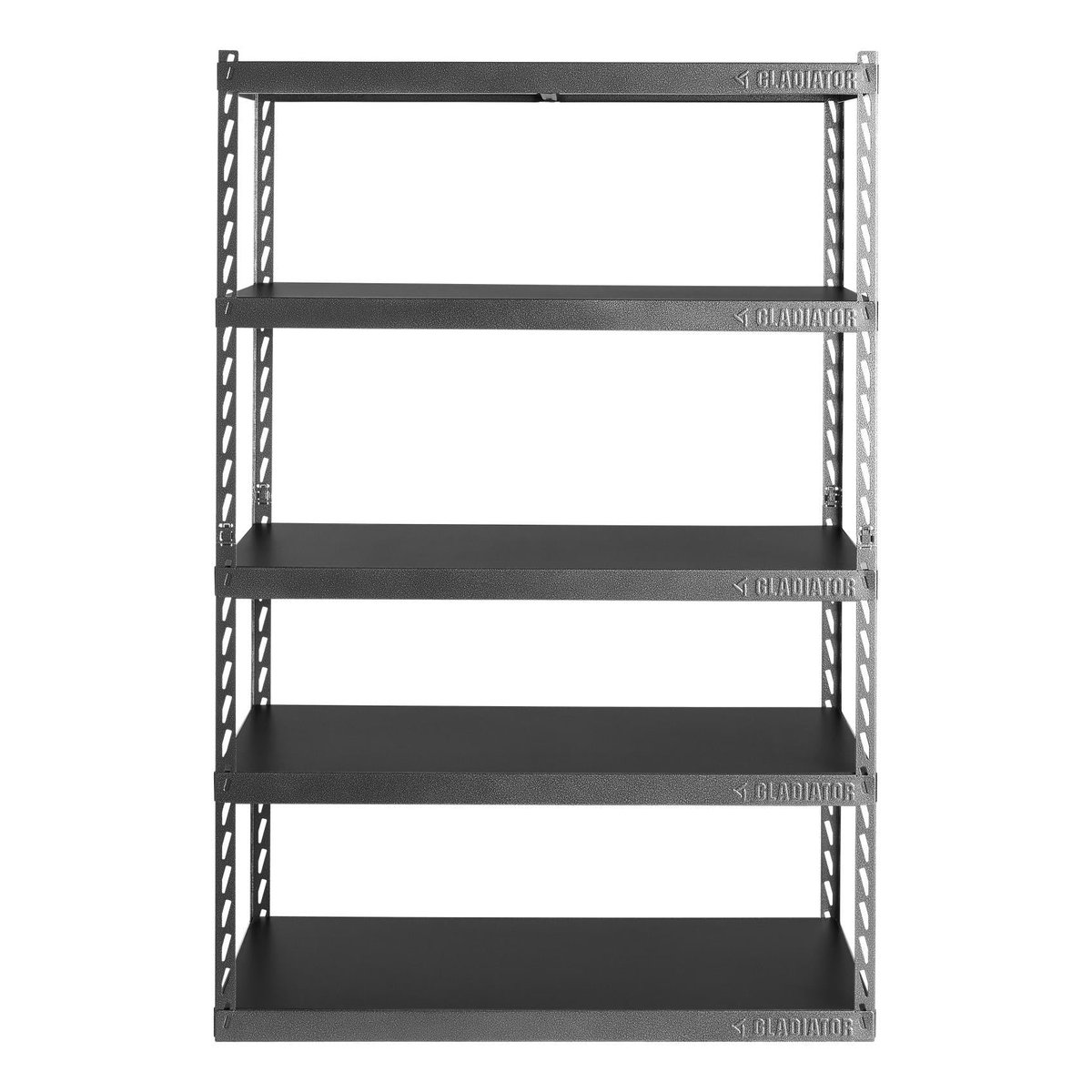

5 laminate tiers, tool-free, sold only by Gladiator
Model
GARK485XGG
Per shelf
1,000 lb
Total
5,000 lb
Size
48 × 24 × 72 in
Deck
Full-width laminate, 5 tiers
Warranty
10-year limited
Reasons to buy
Full-width laminate shelves — no wire gaps to lose bolts through, no particleboard edge to swell
1,000 pounds a shelf on a click-and-lock frame that goes together without tools
Units join side by side into a continuous run, so start with one and extend the wall later
Five tiers rather than four in the same 72 inches
Reasons to avoid
10-year warranty rather than the lifetime term on Gladiator's welded 77-inch rack, on a frame that is clicked together rather than welded
Laminate scratches and, unlike steel, it shows every drop of oil
Same story as the 77-inch rack: no Amazon buy box on 12 September 2026, so this is a brand-direct purchase
Shelving for where you handle small things — fasteners, cans, spares — because a solid deck means nothing falls through and a spill wipes off. Modularity is the other argument: fill a wall over two years and a matching unit later gives a continuous run instead of two racks that nearly line up.
Not the right fit if you store things that drip — go to the Seville wire unit and let it drain through.

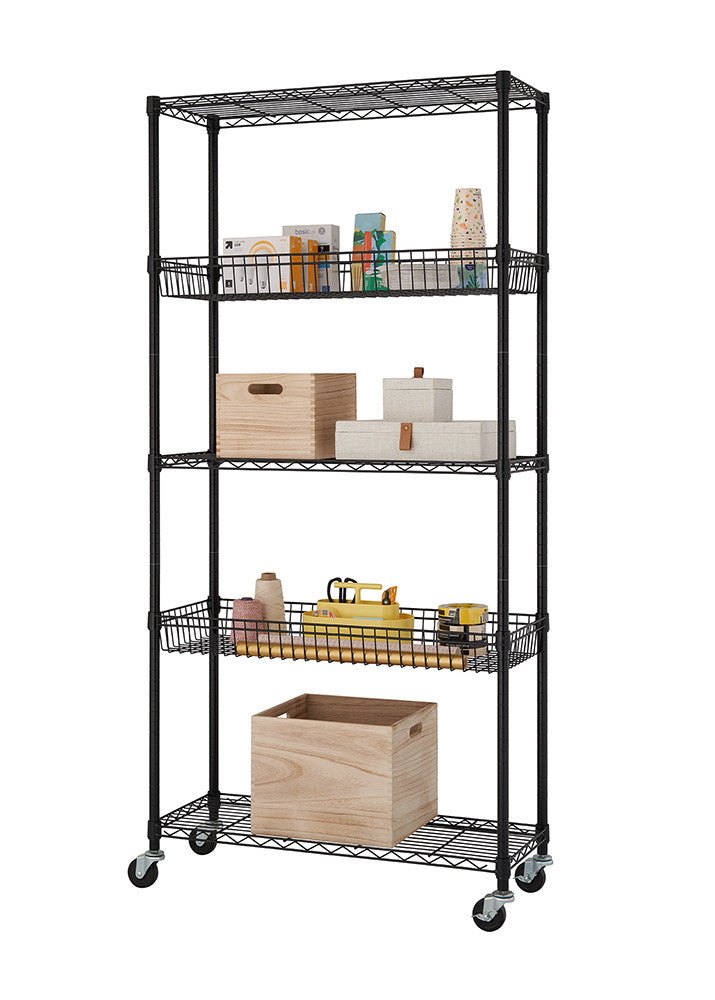

TRINITY 5-Tier Commercial Wire Shelving with Baskets and Wheels
1,350 lb on feet, 500 lb once it rolls
Model
TBFPBK-0960
Per shelf
Not published
Total
1,350 lb on feet / 500 lb on wheels
Size
36 × 14 × 72 in
Deck
3 wire shelves, 2 basket
Warranty
Not published
Reasons to buy
The second unit here to publish both configurations — 1,350 pounds on the feet levelers, 500 once it is on its four swivel wheels, two of them locking
Two of the five tiers are 4-inch-deep wire baskets, so loose items stay put when it moves
14 inches deep, between Sakugi's 12.6 and everything else's 24, and NSF certified
Slip-sleeve locking adjusts every tier in 1-inch increments, no tools
Reasons to avoid
No per-shelf figure anywhere, only the unit total, so you are guessing how to distribute a load
No published warranty term on the product page
A rolling rack is a different tool from a standing one: it is for the things that have to come out of the corner — a bag of salt, a case of oil, the decorations. The honest number is the reason it is here. Trinity prints 1,350 pounds on levelers and 500 on wheels in the same block, which is the same admission Seville makes, and it means a loaded rolling rack is a 100-pound-a-shelf rack, not a heavy-duty one.
Not the right fit if it will live against a wall and never move — take the feet off the equation and the Seville holds far more for similar money.

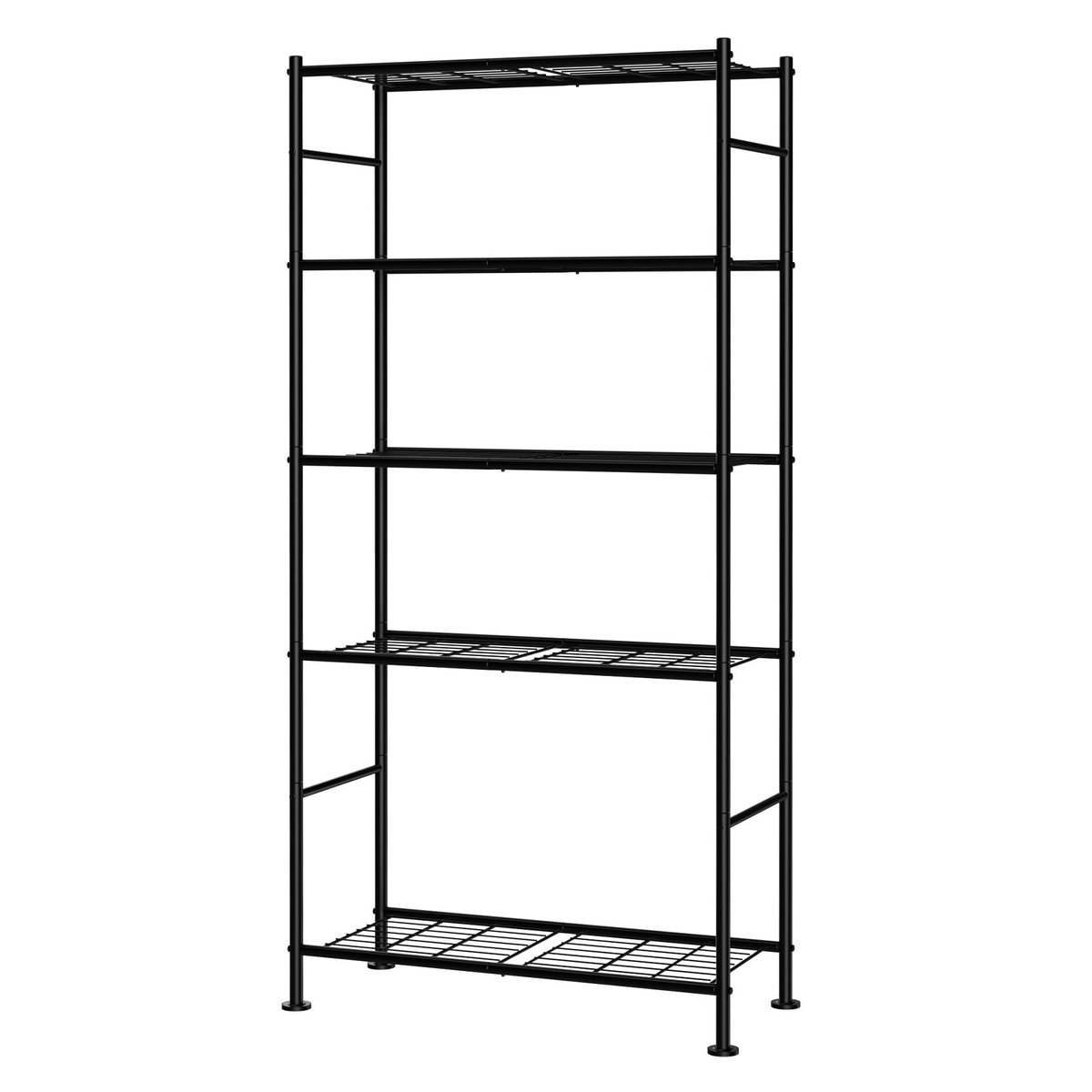

12.6 inches deep against the 24 everything else needs — the difference between a one-car garage you can walk through and one you cannot
0.9-inch tubes published, where several competitors say nothing about their uprights
Four leveling feet and a wall fixing kit in the box, the anti-tip provision most budget racks omit
Reasons to avoid
A 1,000-pound total and no per-shelf figure at all, which is the number you need when deciding what goes where
No published warranty or adjustment increment
Depth is the constraint nobody writes about. A 24-inch unit in a single-car garage leaves roughly two feet between the shelf face and the car door, before you open anything; at 12.6 inches this fits a wall you would otherwise write off. The missing per-shelf figure is a real gap — plan on a fifth of the total per shelf.
Not the right fit if you need real capacity in a narrow footprint — nothing here does both, so use the TRINITY rolling rack at 14 inches deep.
Every capacity, dimension and material above was read off the manufacturer's own product page or spec table — Gladiator's and Seville's spec tables, Trinity's specification blocks, Sakugi's product page. No retailer copy was promoted into a spec, and the figures were collected in September 2026; specs change, so check the brand page before you buy.
The qualifier attached to every number is recorded, because that is where this category hides. "Evenly distributed load", "on leveling feet", "on wheels", "total" and an unqualified "holds up to" are five different claims, and the table keeps each brand's wording.
Where a headline number and a detail number disagreed, both are shown — VEVOR's title says 2,000 pounds, its spec list says 400 a shelf.
Units with no reachable manufacturer page were excluded on principle. If nobody publishes a spec sheet there is no number to hold anyone to, and no warranty to claim against.
Every buying route was opened on 12 September 2026. The two Gladiator racks have no Amazon buy box and are marked brand-direct; two units that were picks a week ago are now in the rejects for the same reason.
The verdict
Best overall: the Seville Classics UltraDurable 5-Tier. 800 pounds a shelf on leveling feet, NSF certification, a 10-year warranty, and it is the heaviest-rated unit here you can put in a cart today.
Best value is the Sakugi at 12.6 inches deep, which is the unit that fits a one-car garage rather than filling it. Gladiator's welded 77-inch rack is still the strongest shelf on the page at 2,000 pounds — buy it from Gladiator, because nobody else has it.
The buying mistake is assuming the biggest printed number is the strongest shelf. Check per-shelf against total, check the qualifier, and check the remedy.
Per shelf the published figures run 400 pounds (VEVOR) to 2,000 (Gladiator), with 800 to 1,000 the common band, while totals run 1,000 to 8,000. Always check which of the two a brand is quoting — VEVOR's title says 2,000 pounds and that is the total across five shelves.
What does "evenly distributed load" actually mean?
It means the rating assumes weight spread across the whole shelf, not concentrated in the middle or at one end. Gladiator publishes 1,000 pounds a shelf on the EZ Connect rack without the phrase; Seville and Trinity attach "on leveling feet" instead, which is the same idea applied to the frame rather than the deck.
Does putting shelving on casters reduce its capacity?
Dramatically. Seville publishes 4,000 pounds total for its 48 × 24-inch unit on leveling feet and 500 on its own wheels, a factor of eight; Trinity publishes 1,350 and 500 for its rolling rack. Two brands, same admission. If you need real capacity, use the feet.
How deep should garage shelving be?
24 inches is the standard here and it costs two feet of bay, which is usually too much in a single-car garage — a 12.6-inch unit holds far less but leaves a walkway. Measure from the wall to the widest point of your car door when open, not to the car.
Do I need to anchor a shelving unit to the wall?
It is cheap insurance on anything 72 inches tall, and a garage floor slopes toward the door by design, so level the feet first and anchor second. Trinity's PRO ships an anti-tip kit as standard and Sakugi includes a wall fixing kit; the rest leave it to you.
Also considered
Edsal Muscle Rack 5-Shelf Boltless Steel Shelving (UR245P-BLK) — The only spec table in this category headed "Shelf Capacity (lbs.) (Evenly distributed load)" — the qualifier printed rather than implied, at 800 pounds a shelf on a rivet-lock frame. It was this page's value pick until 12 September 2026, when five different Muscle Rack ASINs for the same unit all came back without a buy box. Edsal publishes the spec table but sells through retailers only.
FLEXIMOUNTS 4-Tier Heavy Duty Shelving with Hooks (FS26MB-H) — The biggest published numbers anywhere in this category — 2,500 pounds a shelf, 10,000 total, on screw-locked rather than riveted beams — with no warranty term, steel gauge or distributed-load qualifier published behind them. Both of its Amazon ASINs lost their buy box by 12 September 2026 and FLEXIMOUNTS' own page would not confirm stock to an automated check, so there is no route we can stand behind.
VEVOR 5-Tier Storage Shelving Unit, 48 × 24 × 72 — The product title reads "2000 lbs Capacity" and its own spec list reads "Each Shelf Load — 400 lbs". Both are true, and 400 is the lowest per-shelf figure in the group.
Amazon Basics 4-Shelf Wire Storage Shelves — Enormous seller, no manufacturer website — no spec sheet, no load qualifier, no warranty document, no product photograph that is not retailer-hosted.
Husky 5-Tier Industrial Duty steel shelving — Probably a good rack, with not one readable published number. The "1,800 lb per shelf" figure that circulates comes from search snippets rather than a page anyone can open.
SONGMICS 5-tier storage shelves — No pound figure anywhere on SONGMICS' own garage-shelving pages, and the unit sold under the heavy-duty search terms is 11.8 inches deep — a household rack.
