The 6 best garage storage cabinets (2026)
By Chris Y. · Founder & editor · reads the installation manual before the product page
Image: Gladiator GarageWorks
Buy the Gladiator Ready-to-Assemble Large GearBox. It is 36 inches wide by six feet tall, Gladiator publishes 450 pounds a cabinet and 75 pounds a shelf, and the leveling legs deal with the slope every garage floor has.
A cabinet is the only garage storage that hides things, which is why it is the piece people buy when the garage has to look finished rather than just work. It is also the piece with the weakest published numbers — the total-capacity figure is easy to find and the per-shelf figure, which is what actually decides whether your cabinet sags, usually is not.
One brand here contradicts itself on its own product page: the spec table for Gladiator's Full-Door Wall GearBox says 150 pounds total and 40 a shelf, and the feature text beside it says 410 pounds a cabinet and 55 a shelf. That is not a typo we are fixing quietly — it is printed below, because when a brand publishes two numbers you load to the smaller one.
How to shop for a garage storage cabinet
Pounds per shelf, not pounds per cabinet
A 450-pound cabinet with four shelves is a 75-pound shelf, because you cannot stack the load in a column. Every pick below carries the per-shelf figure where the maker publishes one.
Depth, because depth is what you lose
These run 12 to 24 inches deep. Against the side wall of a 12-foot bay, an 18-inch cabinet leaves room to open a car door and a 24-inch one does not.
Does it deal with a sloping floor
Garage slabs are poured with a slope toward the door. Gladiator publishes leveling legs, Seville publishes four leveling feet with rubber pads; a cabinet without them stands crooked and the doors stop latching.
Welded or flat-packed
NewAge ships the Bold sets fully welded, which is stiffer and heavier; the Gladiator and Seville cabinets arrive flat and go together in an evening. One is a delivery problem, the other is an evening.
A warranty with a number
Gladiator publishes ten years on these cabinets. Most of the category publishes nothing, and a cabinet is a ten-year purchase if it is anything.
Somewhere you can actually buy it
Full-height steel cabinets are freight items, and most of this category has no retail buy box at all — only third-party sellers with no featured offer. Five of the six picks here are bought from the maker, and each pick says so rather than sending you to a page with no price on it.
Best overall
Image: Gladiator GarageWorks
Gladiator Ready-to-Assemble Large GearBox
450 lb a cabinet, 75 a shelf, six feet tall
Model
GALG36KD
Size
36 × 18 × 72 in
Capacity
450 lb/unit, 75 lb/shelf
Shelves
4 levels, adjustable
Floor
Leveling legs
Warranty
10-year limited
Reasons to buy
Gladiator publishes both numbers — 450 pounds a cabinet and 75 a shelf — which is the pair you need and the pair most brands only half-print
Leveling legs come with it, so the sloped slab under every garage stops being a door-latch problem
18 inches deep, which still lets a car door open beside it in a standard bay
An optional wall bracket kit lifts the whole cabinet onto a Gladiator wall system, off the floor entirely
Reasons to avoid
Flat-packed, so an evening with a screwdriver stands between delivery and storage
75 pounds a shelf is fine for paint, gear and hand tools and short of what a shelf of car parts weighs
Gladiator's retail pages for this cabinet carry no featured offer — third-party sellers only — so the button below goes to Gladiator's own store, where it is in stock
This is the default garage cabinet for a reason. Six feet of height in a 36-inch width puts four working levels against a wall, and Gladiator prints the per-shelf number rather than leaving you to divide the headline by the number of shelves and hope.
The leveling legs matter more than they sound. Garage floors are poured with a deliberate slope toward the door, and a tall cabinet standing on that slope has doors that drift open and a frame that racks. The bracket kit is the other quiet advantage — if you already run GearTrack or GearWall, this cabinet can hang on it instead of standing on the floor you were trying to clear.
Not the right fit if you want it finished and welded out of the crate — that is the NewAge Bold set.

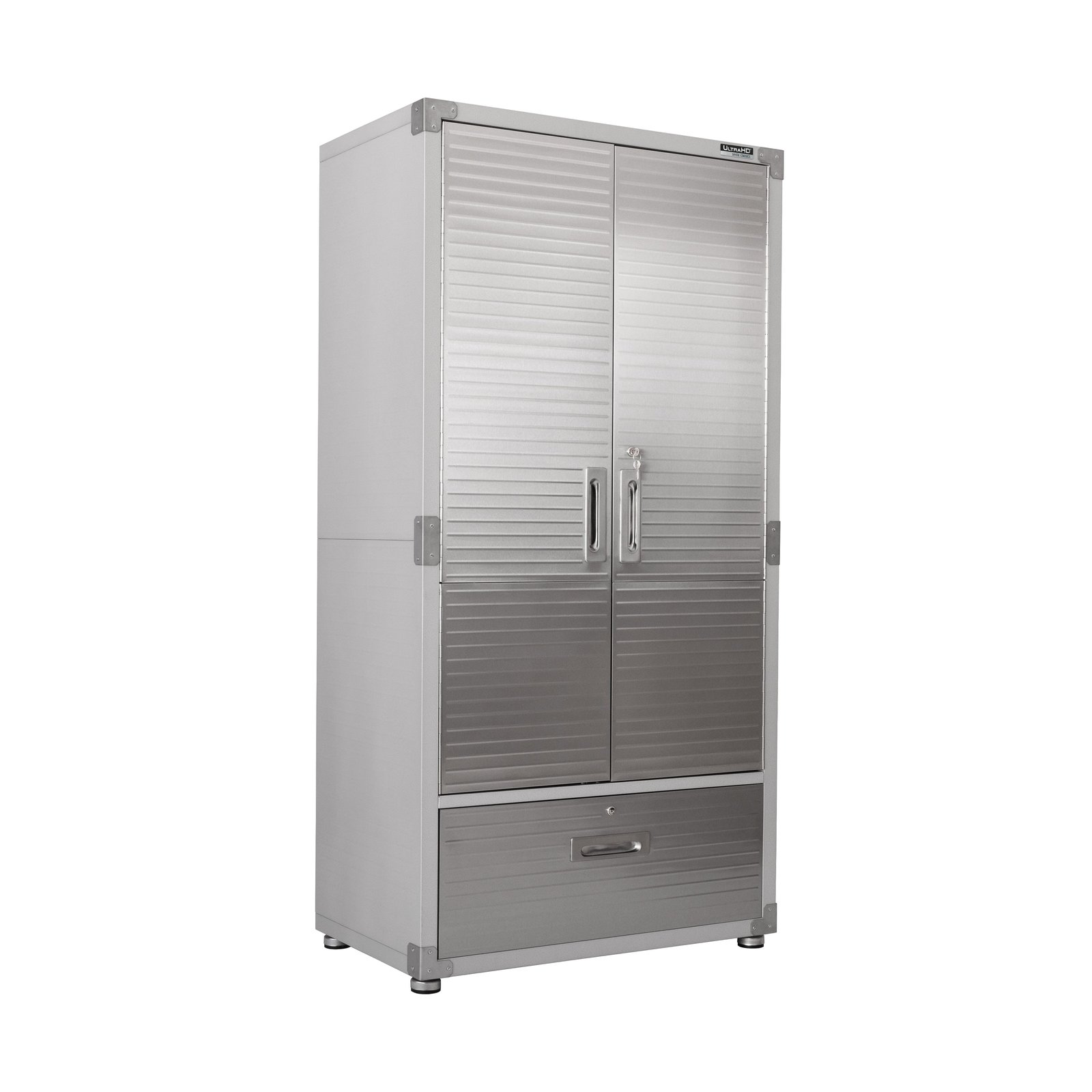

Seville Classics UltraHD Storage Cabinet with Bottom Drawer
500 lb total, and a drawer rated separately
Model
UHD16265B
Size
36 × 18 × 72 in
Capacity
500 lb total, 150 lb/shelf
Shelves
4 adjustable, plus a drawer
Drawer
50 lb, ball-bearing
Interior
35.75 × 16 × 56 in
Reasons to buy
The most complete specification in this category — total capacity, per-shelf capacity, drawer capacity, interior dimensions and a published 170-degree door-hinge angle
150 pounds a shelf is double the Gladiator figure, in the same 36 by 18-inch footprint
The locking bottom drawer takes four hanging file rails, letting one cabinet hold both tools and the paperwork about the tools, and four leveling feet with rubber pads come in the box
Reasons to avoid
Dearer than either Gladiator floor cabinet, and 108 pounds of net weight to get up your driveway
Seville sells this from its own store; there is no retail buy box for it, so the button below goes to Seville
Nobody in this category documents a product like Seville. Interior dimensions, drawer inner dimensions, hinge angle, per-shelf and total capacity, net weight — the answer to almost any question you would have before buying is printed, which means fewer surprises when the crate opens.
The 150-pound shelf is the real argument. Two of these along a wall hold 1,000 published pounds between them, and the drawer takes the small heavy things — impact sockets, fasteners — that make a shelf sag.
Not the right fit if you want it on Amazon in one cart — the Gladiator Large GearBox is the close substitute.

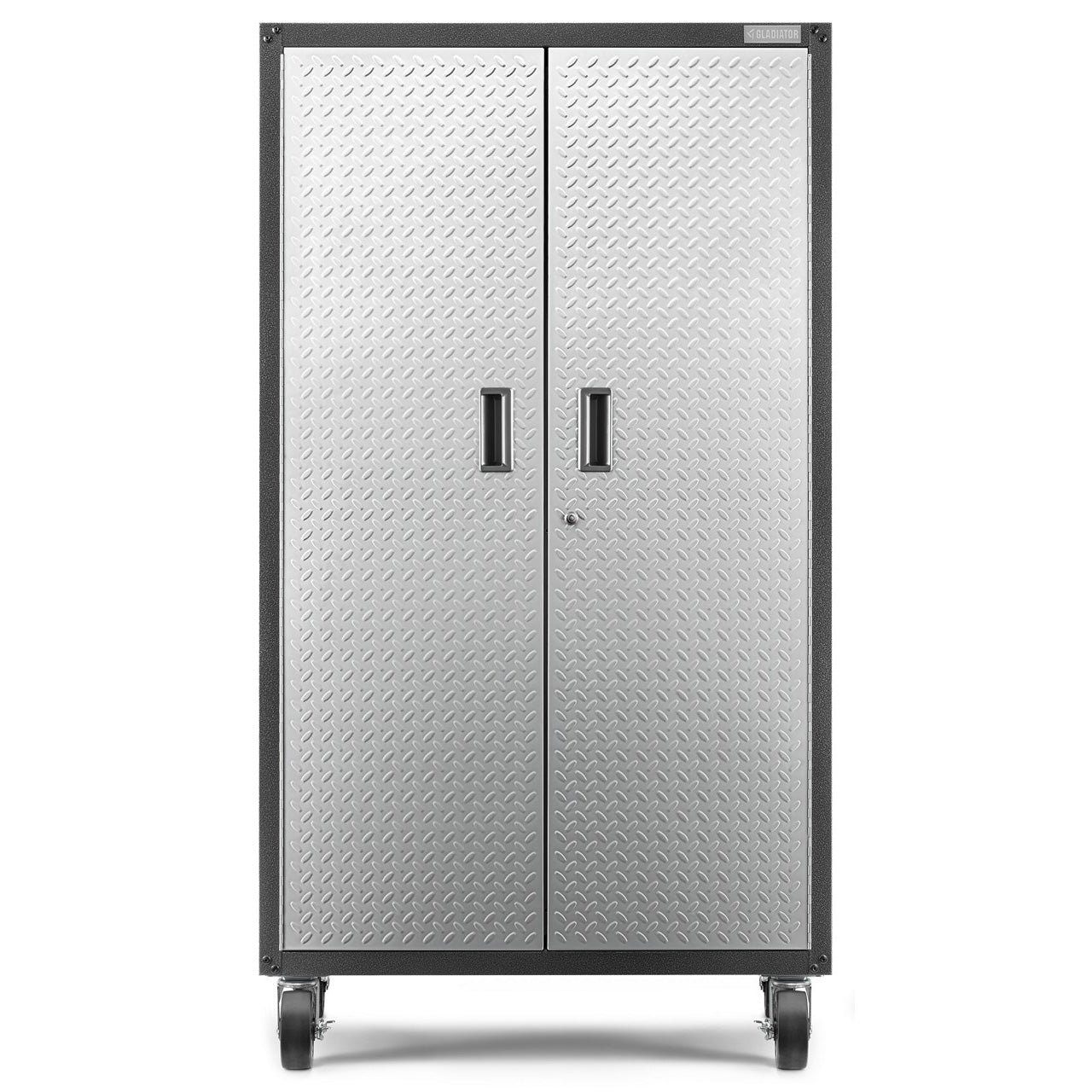

Gladiator Ready-to-Assemble Mobile Storage Cabinet
450 lb that rolls, 66 inches tall
Model
GALG36CK
Size
36 × 18 × 66 in
Capacity
450 lb/unit, 75 lb/shelf
Shelves
3
Casters
Front locking, rear swivel
Warranty
10-year limited
Reasons to buy
The same published 450 pounds as the fixed Large GearBox, on four casters
Front casters lock and rear casters swivel, so it parks where you push it and stays there
Six inches shorter than the fixed cabinet, which clears low garage obstructions like a door track
10-year limited warranty, the same as the rest of the Gladiator cabinet line
Reasons to avoid
Three shelves instead of four, so the same capacity spreads across fewer levels
Casters on a sloped garage slab need the locks used every time, not most times, and Gladiator's retail pages for it have no featured offer either — buy it from Gladiator
A garage is one of the few rooms where furniture should move. This holds the same published weight as the fixed cabinet and rolls out of the way when a project needs the wall, which in a single-bay garage happens constantly.
Take the caster locks seriously. A slab poured with drainage slope plus 450 pounds on wheels is a cabinet that walks, and it walks toward the door where your car is.
Not the right fit if the cabinet will never move — the fixed Large GearBox gives you a fourth shelf for the same money.
800 published pounds, the highest total on this page, in one five-foot-wide cabinet
The bottom shelf is rated separately at 200 pounds, which is where the heavy things were going anyway
24 inches of depth swallows a tote sideways, behind locking stainless doors with the same fingerprint-resistant coating as the rest of the UltraHD line
Reasons to avoid
24 inches deep against the side wall of a 12-foot bay leaves too little room to open a car door
100 pounds per adjustable shelf is lower than the smaller Seville cabinet's 150, because the shelf spans five feet
Wide cabinets trade shelf rating for span, and this one prints the trade instead of hiding it — 800 pounds total, but 100 a shelf against 150 in the narrower model. Load the heavy things low, where the bottom shelf's 200-pound rating lives.
The depth is the decision. Two feet is the right cabinet for the back wall of a garage and the wrong one for the side wall, and no capacity number changes that.
Not the right fit if your cabinet goes beside the car — take the 18-inch-deep UltraHD with bottom drawer instead.

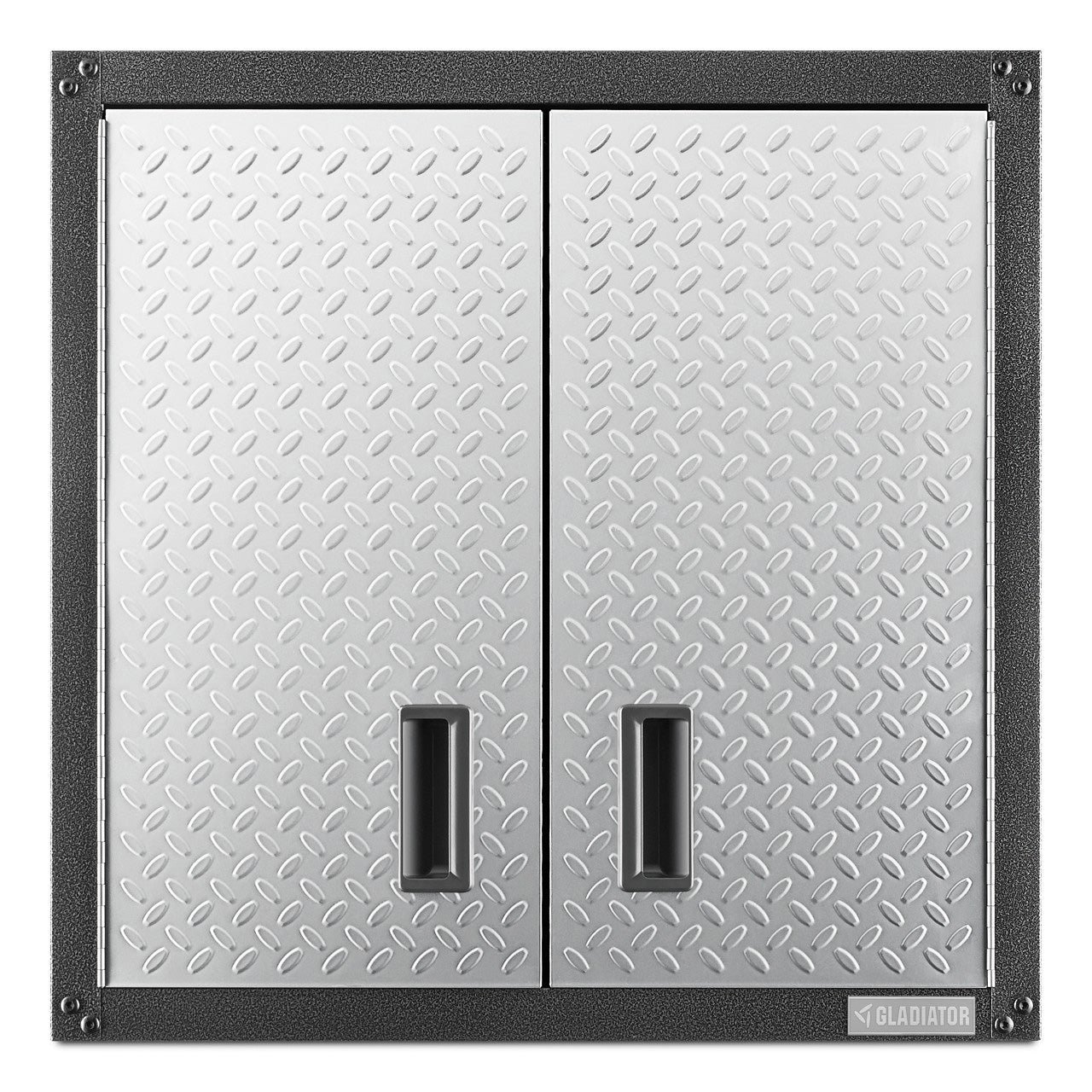

The only cabinet here that uses no floor at all — it hangs on GearWall or GearTrack and moves along the rail later
12 inches deep, shallow enough to sit above a bench without becoming a head hazard
Two adjustable shelves in a 28-inch square box, which is the right size for chemicals and paint kept away from children
Cheapest way into the Gladiator system if you already own the wall
Reasons to avoid
Gladiator's own page publishes two different capacities for it — 150 pounds total in the spec table, 410 in the feature text. Load to 150
Needs a Gladiator wall system already installed, so the real price includes the panels
Like the rest of the Gladiator line it has no retail featured offer, so the button goes to Gladiator's store
Wall cabinets are the honest answer to a garage where the floor is the problem, and this is the flexible version — it hangs on the rail system and slides along it when the garage is rearranged.
The capacity conflict is the story. A brand publishing 150 pounds in its specification table and 410 in the marketing copy on the same page has told you which number the engineers signed off on. Forty pounds a shelf is paint cans and hardware, not power tools.
Not the right fit if you have no wall system — a floor-standing Large GearBox needs nothing from your wall.

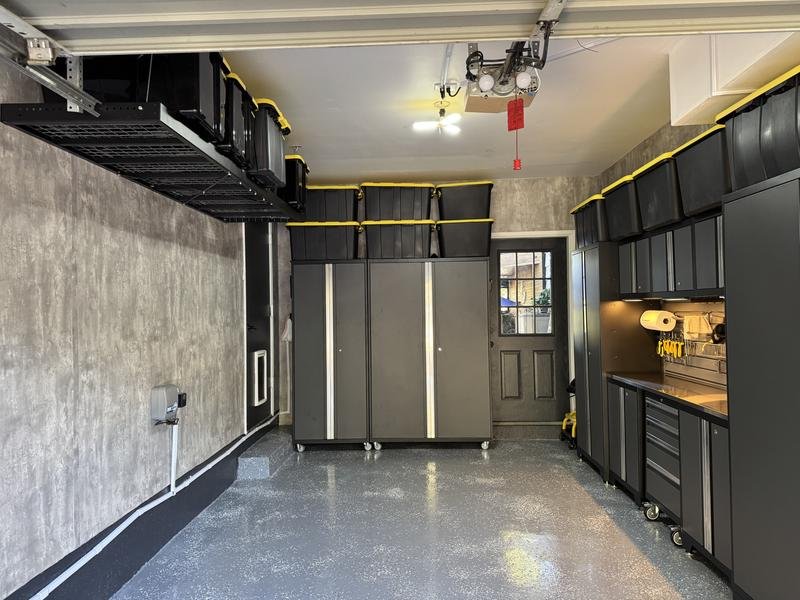

Arrives fully welded, so the wall goes from crate to finished in an afternoon of positioning rather than an evening of bolts
24-gauge steel frames and doors with a powder-coat finish, published rather than described
Eleven feet of continuous wall — base cabinets, wall cabinets and a worktop that line up, which piecemeal cabinets never quite do
Lockable doors across the set, which matters in a garage a lot of people walk through
Reasons to avoid
NewAge publishes the gauge and the dimensions but no per-shelf load rating, which is the number this page cares about most
Top price band on the page by a distance, and welded cabinets ship on a pallet
It is the only pick here with a working retail buy box, which says more about how this category is sold than about the cabinet
This is the buy for somebody redoing a whole wall at once rather than adding a cabinet. Welded construction is genuinely stiffer than flat-packed, the pieces are designed to line up, and the result reads as a fitted room instead of a row of lockers.
It is also the pick that fails this site's own test. Nowhere on the product page is there a pounds-per-shelf figure, which for an eleven-foot run of adjustable shelving is exactly the number you would want before loading it. Buy it for the finish and the welding; plan the loading conservatively.
Not the right fit if you want a published shelf rating before you load it — the Seville UltraHD prints every number.
Capacities, dimensions, steel gauges and warranty terms come from the manufacturer's own product page — Gladiator, Seville Classics and NewAge — collected September 2026.
Where a manufacturer published two conflicting capacities for the same cabinet, both are printed and the guide plans to the smaller. That happened once here, on Gladiator's Full-Door Wall GearBox: 150 pounds in the spec table against 410 in the feature copy.
Per-shelf ratings were preferred over total-unit ratings wherever both exist, because a cabinet fails one shelf at a time and nobody loads a cabinet evenly.
Depth was checked against a standard 12-foot single bay with a 6-foot-wide car, which is why the 24-inch cabinet is recommended for a back wall rather than a side wall.
Every retail page was opened in September 2026 and checked for a working buy box. Five of the six cabinets had none — third-party sellers with no featured offer — so their buttons go to the maker, and each pick says so.
The verdict
Best overall: the Gladiator Ready-to-Assemble Large GearBox. Four levels, 450 published pounds, 75 a shelf, leveling legs for a sloped slab and ten years of warranty behind it, at the middle price band.
For the best-documented cabinet in the category, the Seville UltraHD with bottom drawer at 150 pounds a shelf; for a whole wall at once, the welded NewAge Bold set. The mistake to avoid is buying on the total-capacity headline — divide it by the number of shelves before you decide, because that is the number your paint cans actually sit on.
How much weight can a garage storage cabinet hold?
Between 150 and 800 published pounds across this page. Gladiator's wall cabinet lists 150 pounds total, its floor cabinets 450, Seville's 36-inch cabinet 500 and its 60-inch cabinet 800. Per shelf the range is 40 to 150 pounds, which is the figure that matters.
How deep should a garage cabinet be?
18 inches for a side wall, 24 for a back wall. A 12-foot bay with a 6-foot car leaves about 3 feet each side, and a 24-inch cabinet takes two of those three feet — enough to stop a car door opening fully.
Are welded garage cabinets worth it over ready-to-assemble?
For stiffness and time, yes; for published numbers, not necessarily. NewAge's welded Bold sets publish 24-gauge steel and no per-shelf rating, while Gladiator's flat-packed cabinets publish 75 pounds a shelf and ten years of warranty. Welded cabinets also arrive on a pallet.
Do garage cabinets need to be anchored to the wall?
Tall cabinets should be. A 72-inch cabinet is a tip hazard when the top shelf is loaded and a lower door is open, and both Gladiator and Seville publish wall-bracket or anchoring options. The wall-hung GearBox transfers its whole 150-pound rating into the wall system by design.
Will a cabinet stand level on a garage floor?
Not without help. Garage slabs are poured with a slope toward the door for drainage, so any cabinet over five feet needs the leveling feet both Gladiator and Seville include. Without them the doors swing open on their own.
What is the difference between a garage cabinet and a locker?
Shelf layout, mostly. A cabinet is two to four horizontal shelves; a locker is one tall bay for rakes, brooms and a garment rod. Seville's wardrobe version of the UltraHD cabinet publishes 575 pounds total with 75 of that allotted to the hanging rod.
Also considered
Plastic resin storage cabinets — They survive damp better than powder-coated steel and publish shelf ratings around 25 to 75 pounds. For garden chemicals and hoses that is enough; for tools it is a quarter of what the steel cabinets here carry, and the doors sag in heat.
Wall-hung cabinets sold without a mounting system — Several look like the Gladiator wall box and ship with two keyhole slots and no bracket. A 150-pound cabinet hanging on two screws requires both to land in studs 16 inches apart, which is a coincidence rather than a plan.
Cabinet sets photographed as a wall but sold as pieces — Whole-garage photographs of matching cabinetry usually price a single base unit. Check the piece count in the product title — an eight-piece set and a one-piece cabinet look identical in a wide photograph.
Cabinets with no published capacity at all — Most of the first page of search results, including several 71-inch rolling metal cabinets from sellers with no manufacturer site. A cabinet whose maker will not publish a shelf rating has told you what it thinks the shelf will hold.
