The 6 best garage wall organizer and track systems (2026)
By Chris Y. · Founder & editor · reads the installation manual before the product page
Image: Rubbermaid
Put Rubbermaid FastTrack on the wall. One 48-inch rail is rated to 1,750 pounds in galvanized steel to a published ASTM grade, under a limited lifetime warranty, for less than covering the same wall in panels. For the whole wall rather than one strong line, Proslat's 4 × 8 PVC slatwall includes its trims and hardware in the box.
Nobody here measures the same thing. Rubbermaid publishes pounds per rail; Gladiator per linear foot on tracks and per square foot on panels; Proslat, storeWALL and NewAge per square foot, at 75, 300 and 100. Those do not line up, so the comparable facts are the attachment ones: four of the seven include no mounting screws, and three lock you into their own hooks.
A rail and a panel are not the same purchase: a rail puts a strong horizontal line at one height, a panel puts a weaker hanging surface across the whole wall. Which you want depends on whether your problem is heavy tools or a lot of light ones — there is a zone map in how to plan a garage wall.
How to shop for a garage wall system
What the capacity is measured per
Per rail, per linear foot, per square foot and per hook are four different units, and a 1,750 lb rail and a 75 lb per-square-foot panel can carry similar loads across a wall.
The per-hook number, which is the real limit
Rubbermaid rates its own accessories at 25 to 50 pounds each. That, not the rail, decides whether the pressure washer hangs there.
Are the screws in the box
GearTrack and GearWall both say "Color Matched Screws sold separately", and storeWALL sells its InstallStrips separately. Proslat and NewAge include hardware.
Proprietary or cross-compatible hooks
Proslat, Gladiator and storeWALL are all closed systems. NewAge's 3-inch on-center slots take most standard slatwall accessories — the only escape hatch here.
Stud requirement
FastTrack must start and end mid-stud, Proslat installs on 16-inch centers, and FLEXIMOUNTS takes 16, 18 or 24 but refuses metal studs.
A warranty with a term
Rubbermaid and Proslat publish lifetime terms, Gladiator and storeWALL 10 years, and NewAge and FLEXIMOUNTS no term at all.
Best overall
Image: Rubbermaid
Rubbermaid FastTrack Garage Rail, 48 in.
1,750 lb a rail, screws sold separately
Model
1784415
Capacity
1,750 lb per rail; hooks 25–50 lb
Coverage
48 in of rail per piece
Mounting
Starts and ends mid-stud
In the box
Rail and cover; hardware separate
Warranty
Limited lifetime
Reasons to buy
1,750 pounds per 48-inch rail, the only four-figure single-component rating in this group, from Rubbermaid's own specification sheet
Hot-dip galvanized cold-rolled steel to ASTM A653 structural Grade 80, 0.060-inch minimum base thickness — the only system here that publishes a steel standard rather than an adjective
A limited lifetime warranty covering the system including installation hardware, at a fraction of what panel systems cost for the same wall
Reasons to avoid
Mounting hardware is a separate purchase, so the rail arrives with nothing to hang it with
Accessories are Rubbermaid-only, each hook is rated 25 to 50 pounds, and the rail must begin and end mid-stud — which wants 16-inch framing and a stud finder
The steel specification is why this is the pick: everything else here is described with adjectives, while Rubbermaid publishes an ASTM grade and a minimum base thickness in an installer specification. Understand what that buys, though — the 1,750-pound rail figure is structural, and the number that limits your garage is 25 to 50 pounds per hook. Buy FastTrack because it will never be the weak point.
Not the right fit if you want the whole wall covered rather than one strong line — see the Proslat slatwall.
The only panel box here containing everything for a standard stud installation — 10 slats, four trims, hardware
75 pounds per square foot across 32 square feet, on PVC unaffected by mold or water
2 mm panels from 90% recycled material, under a lifetime warranty
A published masonry method, so a block garage is not shut out
Reasons to avoid
Proslat's own FAQ says Proslat-only accessories, so every hook, basket and shelf is a Proslat purchase from here on
The page carries a California Proposition 65 warning for DEHP
The PVC slatwall and its trims cannot be mixed with Proslat's PROCORE line, so check which range you are buying into
Covering a 4-by-8 section of wall in one box, trims included, is a different experience from the alternatives, three of which make you buy screws separately. It is the least frustrating route from bare drywall to a hung wall in an afternoon — but price in the lock-in, because you are buying the Proslat accessory catalog with it.
Not the right fit if you want to use hooks you already own — the NewAge slatwall is the one that takes standard slatwall accessories.
storeWALL 4 ft Heavy Duty Slatwall Case, Brite White
300 lb a square foot, if you buy the strips too
Model
HD-BW-4ft
Capacity
300 lb/sq ft with InstallStrips; 165 lb at 4 in out
Coverage
20 sq ft (four 4 ft panels)
Mounting
InstallStrip, or ~20 face screws a panel
In the box
4 panels; strips and screws separate
Warranty
10 years
Reasons to buy
300 pounds per square foot at the panel surface, four times Proslat's figure and six times Gladiator's
Solid-core panels 0.70 inches thick, so the finish runs through and a scratch does not show white
Publishes the number that matters for a hanging load — 165 pounds at 4 inches out, because a hook is a lever
Waterproof and washable, with a 10-year panel warranty
Reasons to avoid
The 300-pound figure holds only with storeWALL's hidden InstallStrip, a separate purchase; face-screwing the panel cuts holding capacity by around three quarters
Four panels cover 20 square feet against Proslat's 32 and NewAge's 40 per box, at a higher price band
The system for the wall that holds heavy awkward things — pressure washer, wet vac, a bicycle. Nothing else here publishes anything close to 300 pounds a square foot, and storeWALL is the only brand that says what happens 4 inches out, where a hook's load really sits. Price it as panels plus InstallStrips.
Not the right fit if you want the most wall per box — the NewAge 40 sq ft slatwall covers twice the area.

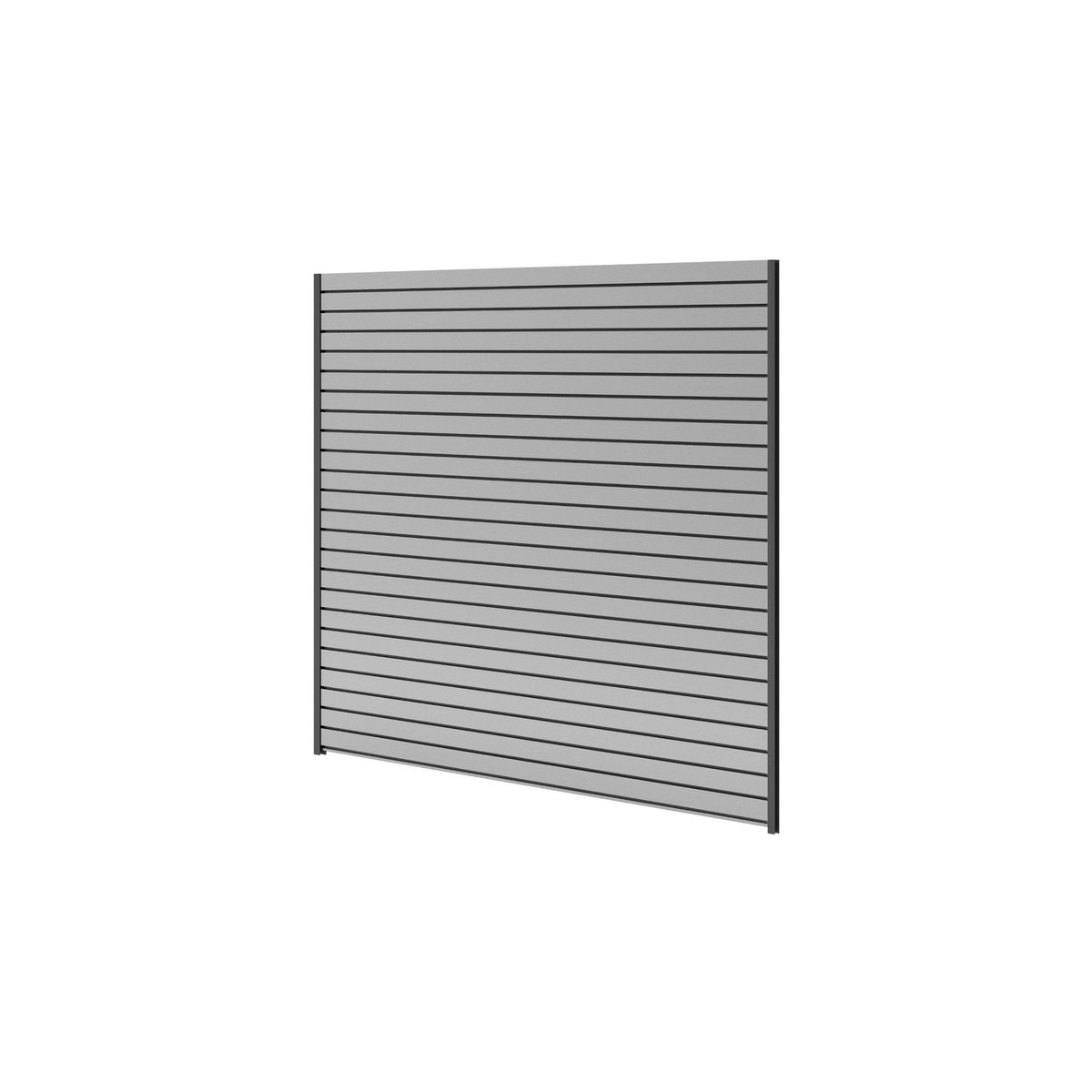

The only system here stating cross-compatibility in writing — 3-inch on-center slots taking most standard slatwall accessories
100 pounds per square foot, qualified "evenly distributed weight when installed properly"
40 square feet per box, the most coverage here, in six 80-inch panels
Wood hardware and four trims included, plus a published disclaimer that capacity depends on hook design and load distance
Reasons to avoid
No warranty term published in the product description on either NewAge site
I found no Amazon route for this SKU, so it is a brand-direct purchase
Every other panel system here is a marriage. NewAge publishes 3-inch on-center slots and the words "most standard slatwall accessories", so the hooks you buy in five years need not come from them, and 100 pounds a square foot is the right rating for a general wall.
Not the right fit if you want a published warranty term — Proslat publishes lifetime and storeWALL publishes 10 years.
75 pounds per linear foot — 300 pounds across a 4-foot channel, the cheapest entry point here
6 inches tall rather than a full panel, so the track goes exactly where the hooks need to be
Two channels per pack, sharing hooks with GearWall under a 10-year warranty
Reasons to avoid
Color-matched screws are sold separately, in Gladiator's own words
No material specification for the channel — not a gauge, not an alloy, not a resin — and the hooks are Gladiator's ecosystem only
The cheapest honest way to try a track system before committing a wall — two 4-foot channels at 75 pounds a linear foot take the rakes, the cords and the leaf blower. The unpublished material is a real gap: Gladiator's copy never says steel, so treat the 75-pound figure as the entire spec.
Not the right fit if you need a single strong point for something very heavy — the FastTrack rail is the one with a four-figure rating.
Wood studs 16/18/24 in, or masonry; no metal studs
In the box
Screws, template, bubble level
Warranty
Term not published
Reasons to buy

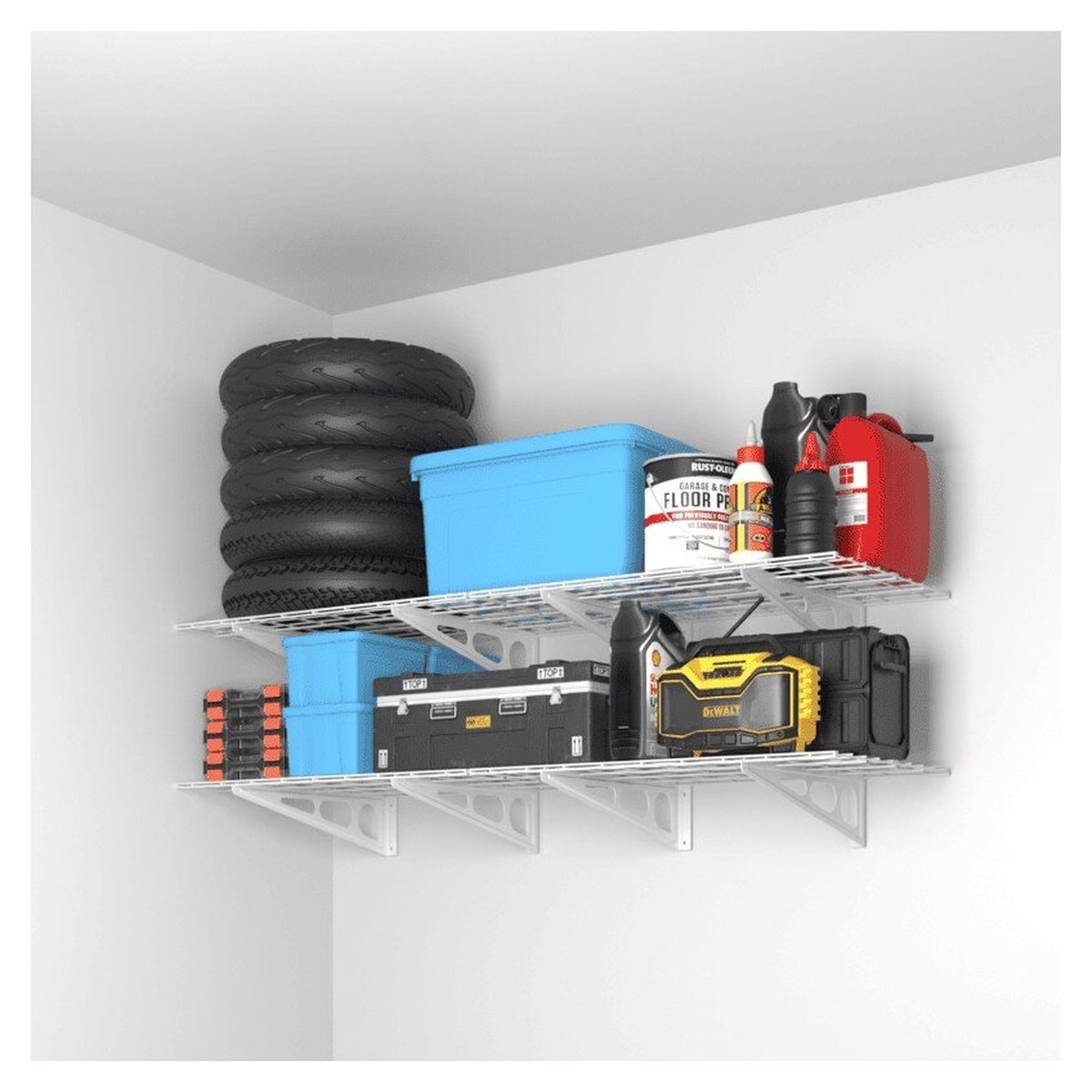

A flat 24 × 72-inch deck rated to 350 pounds per unit — the only surface on this page rather than hanging points
Takes 16, 18 or 24-inch wood studs plus concrete and brick, so a block garage is covered
An installation template and a bubble level in the box, and two shelves per pack for two heights on one wall
Reasons to avoid
It cannot be mounted on metal stud walls, which rules out some finished garages, and no warranty term is published
The "1,400 lbs in total" phrasing counts the two-pack generously — the figure to plan against is 350 pounds a shelf
Hooks are wrong for anything without a handle or a hole in it: paint cans, bins and boxes want a flat surface, and this is the cheapest way to get two onto a wall at 350 pounds each. Read the capacity wording first — the 1,400-pound figure is the pair counted generously.
Not the right fit if you need to hang long-handled tools — that is what the GearTrack channels are for.
Specifications came from the manufacturers' own material. Rubbermaid's consumer site refuses automated requests, so the FastTrack figures are from Rubbermaid's installer site — the MasterSpec sheet, installation instructions and warranty document. Collected in September 2026; specs change, so check the brand page before you buy.
The unit each brand measures in is recorded, not converted — converting a panel rating into a hook rating is the arithmetic that gets things pulled off walls.
Every "what's in the box" line is the manufacturer's own contents list, which is how three of the six turned out not to include mounting screws.
Accessory compatibility came from each brand's published answer, and stud requirements from installation documents — Rubbermaid's say to start the rail in the middle of the first stud and end in the middle of the last, the sentence that decides whether a 48-inch rail suits your framing.
The verdict
Best overall: Rubbermaid FastTrack — a 1,750-pound rail in galvanized steel to a published ASTM grade, with a limited lifetime warranty, for less than any panel system covering the same wall. Buy the mounting hardware at the same time; it is not in the box.
Best full wall is Proslat's 4 × 8 PVC slatwall, trims and hardware included. For heavy items it is storeWALL at 300 pounds a square foot — buy the InstallStrips with it or you throw the rating away — and if you resent lock-in, NewAge is the only maker here that says out loud that standard slatwall accessories fit.
It depends what the brand measures — Rubbermaid publishes 1,750 pounds per 48-inch rail but 25 to 50 per hook; Gladiator 75 per linear foot and 50 per square foot; Proslat 75 a square foot, NewAge 100, storeWALL 300 with its own strips.
Is slatwall or a rail better for a garage?
A rail gives one very strong horizontal line for heavy items at far less per wall; a panel gives a weaker hanging surface everywhere, which suits a lot of light tools. Pressure washer and two ladders, buy a rail; thirty garden tools, buy panels.
Do these systems come with screws?
Three of the six do not. Gladiator says "Color Matched Screws sold separately" on the GearTrack channels, storeWALL sells InstallStrips separately, and FastTrack hardware is its own part number; Proslat, NewAge and FLEXIMOUNTS include wood-stud hardware.
Can I use any slatwall hooks on any slatwall?
Usually not — Proslat's FAQ says Proslat accessories, and storeWALL uses a patented profile. NewAge is the exception, with 3-inch on-center slots and stated compatibility with most standard slatwall accessories.
Also considered
Gladiator 8 ft and 4 ft GearWall Panels (GAWP082PBY, GAWP042P) — Tongue-and-groove composite panels on the same hook ecosystem as the GearTrack channels, rated 50 pounds a square foot — the weakest panel of the group — and Gladiator sells the screws and the base board separately. Checked on 12 September 2026, neither the 8-foot nor the 4-foot pack had an Amazon buy box, while the narrow GearTrack channels from the same brand did. Gladiator sells the panels direct.
Kobalt K-Rail — A house brand whose manufacturer page refuses automated requests, so there is no readable spec sheet and no warranty document anywhere else. The "75 pounds per linear foot" figure circulates in search results with no page behind it.
Unbranded 48-inch and 68-inch "garage tool organizer" rails — These dominate the search results and none has a manufacturer site — no instructions, no stud requirement, no warranty, and a capacity that exists only in the product title. Several mount with drywall anchors alone, which no load-bearing hook should do.
Pegboard, for this job — A different tool rather than a reject — excellent for hand tools at eye level, poor for long-handled or heavy items. Wall Control publishes 100 pounds per panel on drywall, a fraction of any rail here. Pegboard has its own guide, linked below.
